Chapter 1: Installation and wiring
8 Vigilant VS1 and VS2 Technical Reference Manual

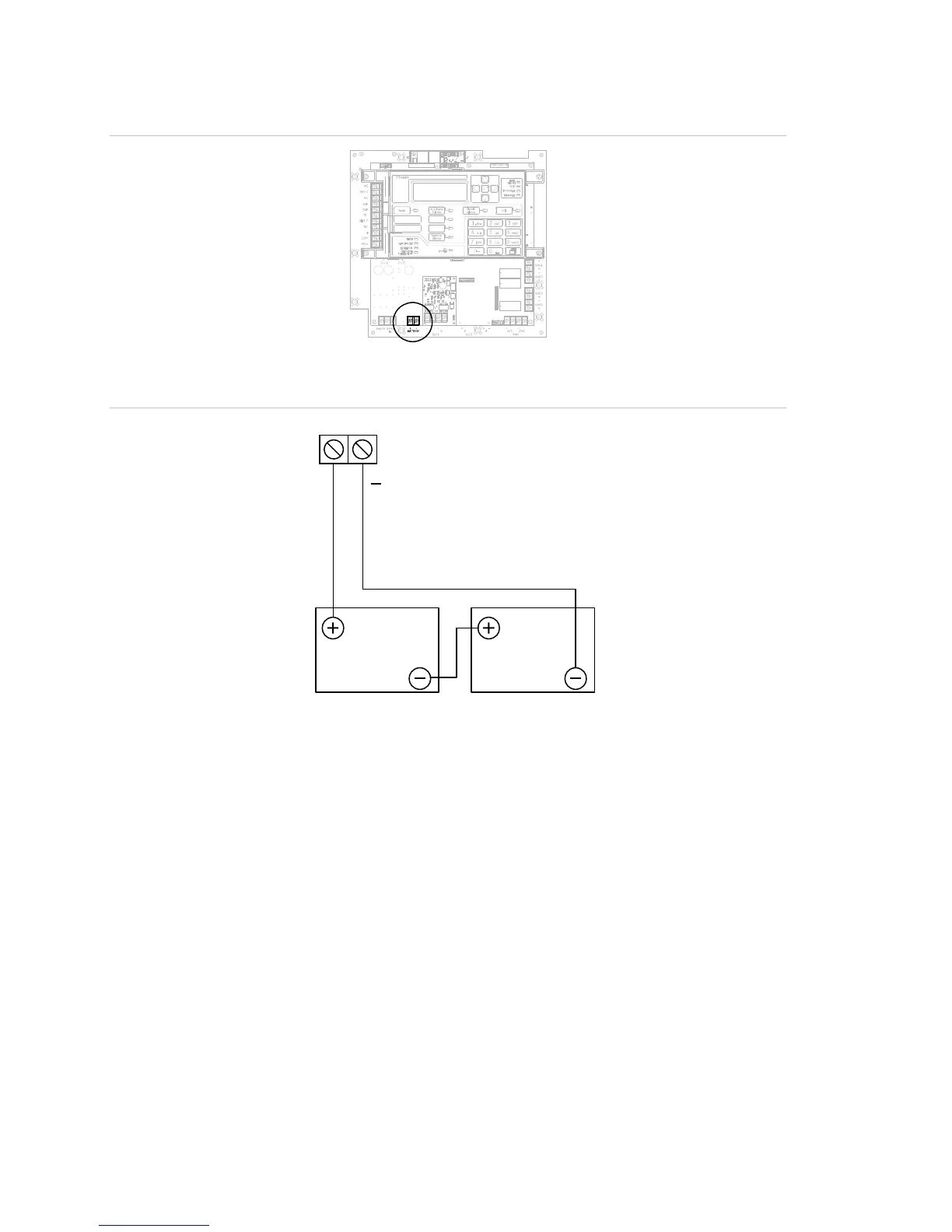

Figure 8: Terminal wiring location
Figure 9: Battery wiring
TB8
Red
Black
12 VDC
Battery
12 VDC
Battery
+
Notification appliance circuit wiring (TB2)
The control panel provides either two or four notification appliance circuits
depending on which model you have. Each circuit can be individually configured for
continuous, temporal, synchronized, coded, or city tie output.
Circuit specifications
• Class B or Class A.
• Circuit voltage: 24 VFWR, regulated
• Circuit current
