Chapter 1: Installation and wiring
Vigilant VS1 and VS2 Technical Reference Manual 5

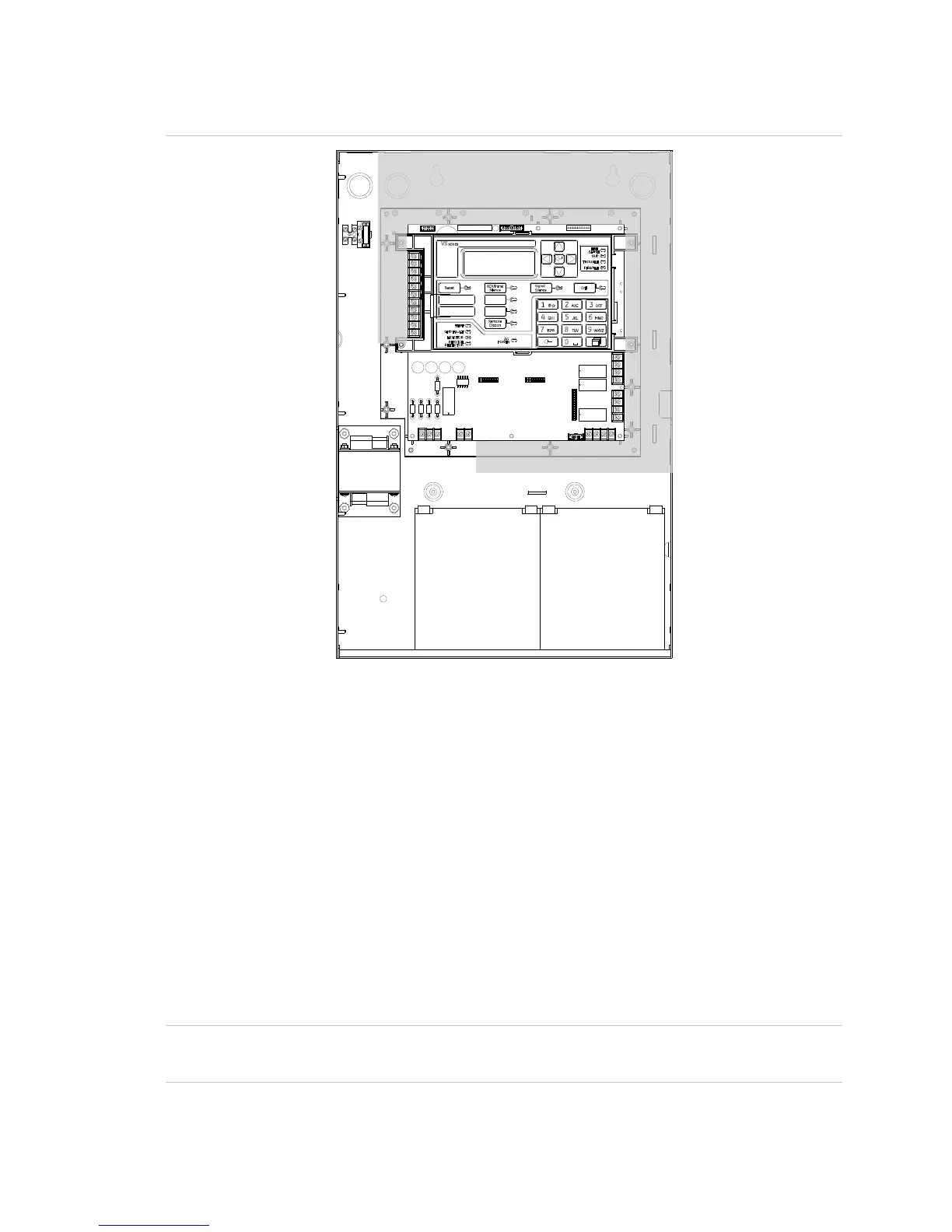

Figure 4: Cabinet wire routing
00:00:00 01/01/07
,
[1]
[1] Power-limited only when connected to a power-limited source.
If connected to a nonpower-limited source, all wiring on
terminal block TB3 must be FPL, FPLP, FPLR rated wire or
equivalent, in accordance with the NFPA 70 National Electric
Code and routed separate from all power-limited wiring.
AC power wiring
Circuit specifications
• VS1 panel: 120 V, 60 Hz, 1.3 A or 230 V, 50/60 Hz,
0.6 A from dedicated branch supply
• VS2 panel: 120 V, 60 Hz, 1.8 A or 230 V, 50/60 Hz,
1.0 A from dedicated branch supply
WARNING: Never replace the fuse while the circuit is energized. The replacement
fuse must be of equivalent size and type.
