Chapter 1: Installation and wiring
24 Vigilant VS1 and VS2 Technical Reference Manual
SA-ETH wiring
The optional SA-ETH card provides a standard Ethernet network connection for
connecting to a local network.
Circuit specifications
• Ethernet: 10/100 Base-T
• Network cable: Crossover cable or straight through cable
• Operating current
Standby/Alarm: 34 mA
Max.: 41 mA
• Max. wire runs: 200 feet (60 m), Cat 5 cable (panel to communication equipment)

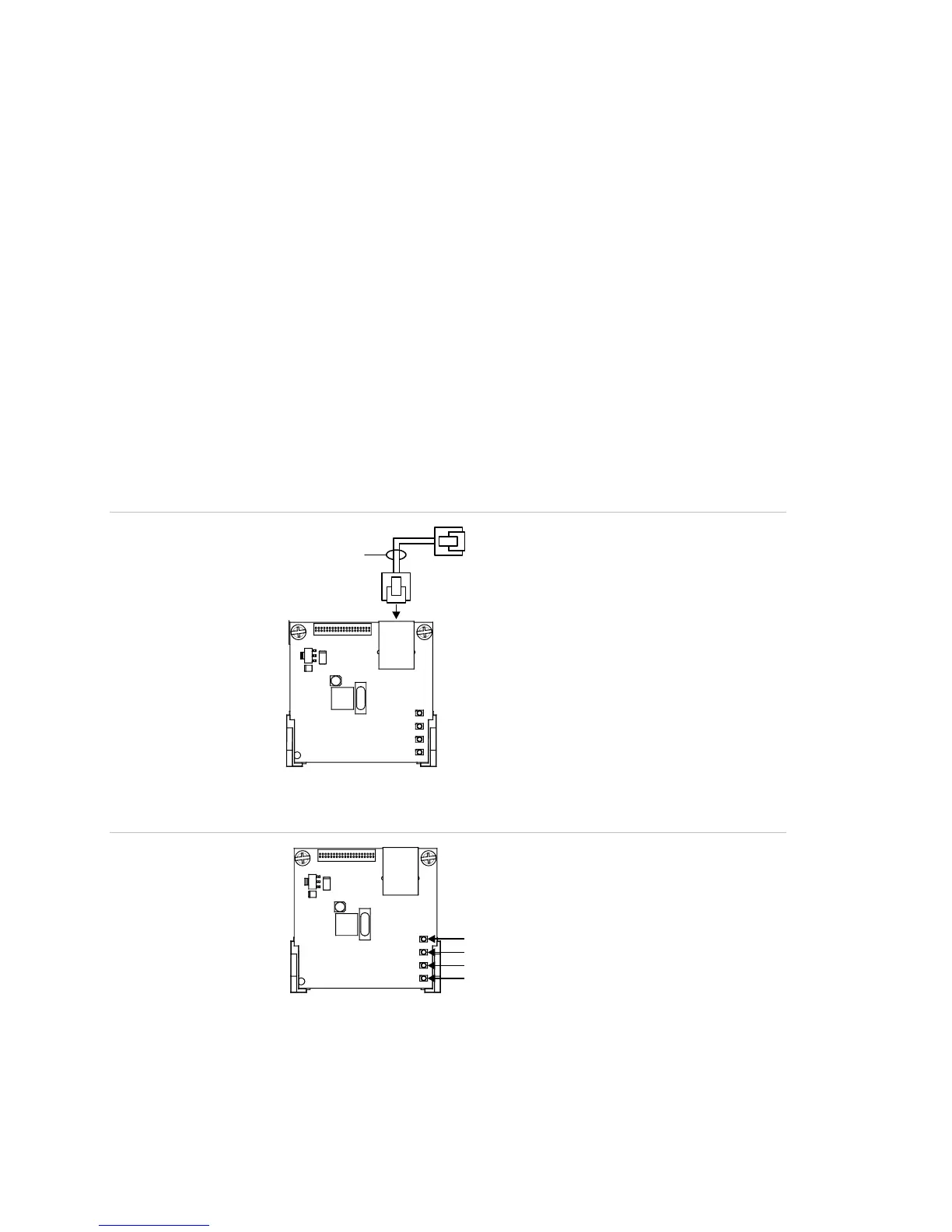

Figure 35: SA-ETH wiring
Network cable
Ethernet card
To network
connection
(PC, router, switch, etc.)
Figure 36: SA-ETH LEDs
Ethernet card
LED 1 (DS1): Link
LED 2 (DS2): Speed
LED 3 (DS3): Duplex
LED 4 (DS4): Collisio
n
