page | 162
Basic Oper
ation
Web Interface
3
1
4
5
2
3

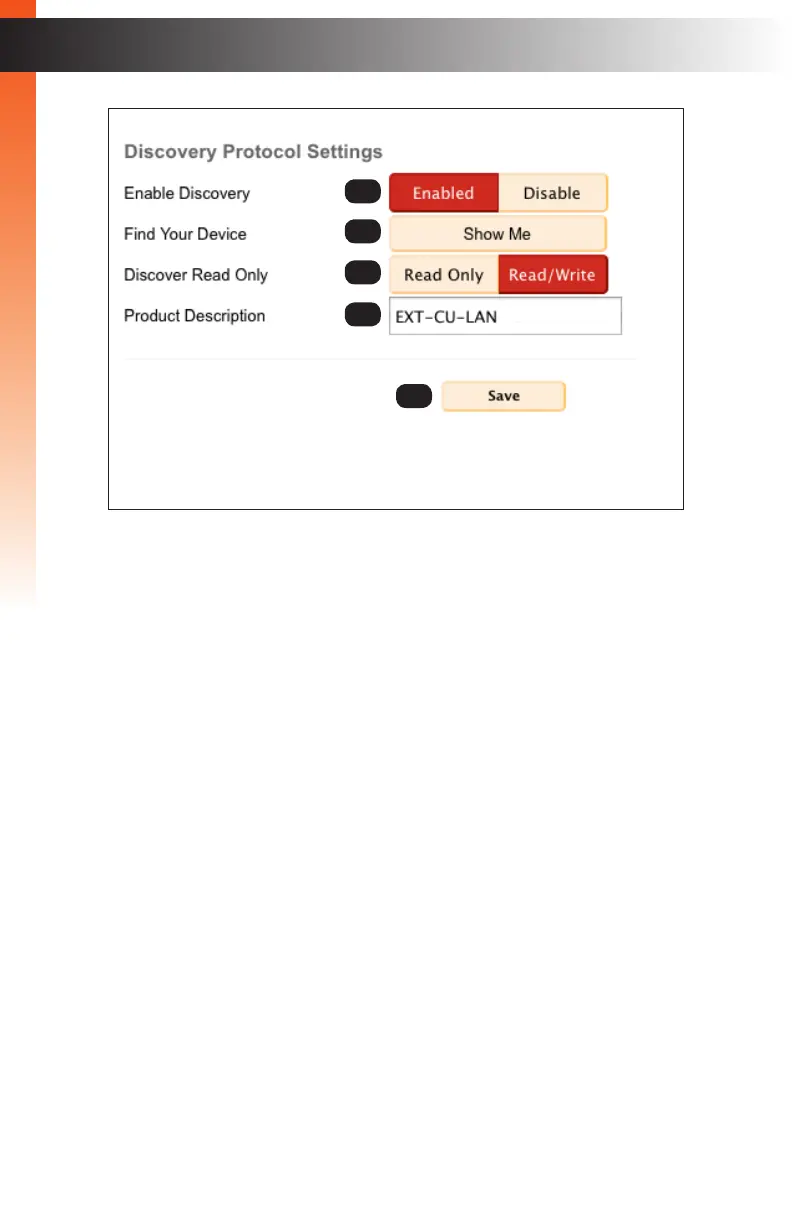

Discover Read Only
Click the
Read Only
button to restrict anyone using the Syner-G Software
Suite from changing the settings of the Matrix Controller
. Click the
Read /
Write
button to allow anyone to read or change the settings of the Matrix
Controller
.
4
Product Description
Enter the name of the Matrix Controller in this field. The default name is
EXT-CU-LAN
.
5
Save
Click this button to save all changes on this page.
B
asic Oper
ation
173
