page | 72
Basic Operation
Basic Operation
Basic Operation
Basic Operation
Using Presets
Editing Quick Presets
The number assignment for a quick preset (user or group) can be changed, if desired.
In addition, the preset Name and Inputs can be changed as well. In order for a quick
preset to be edited, a user or group preset must exist.
1. Login to the web interface as front panel.
2. Click the Main tab.
3. Click the desired group button to display the available inputs and outputs.

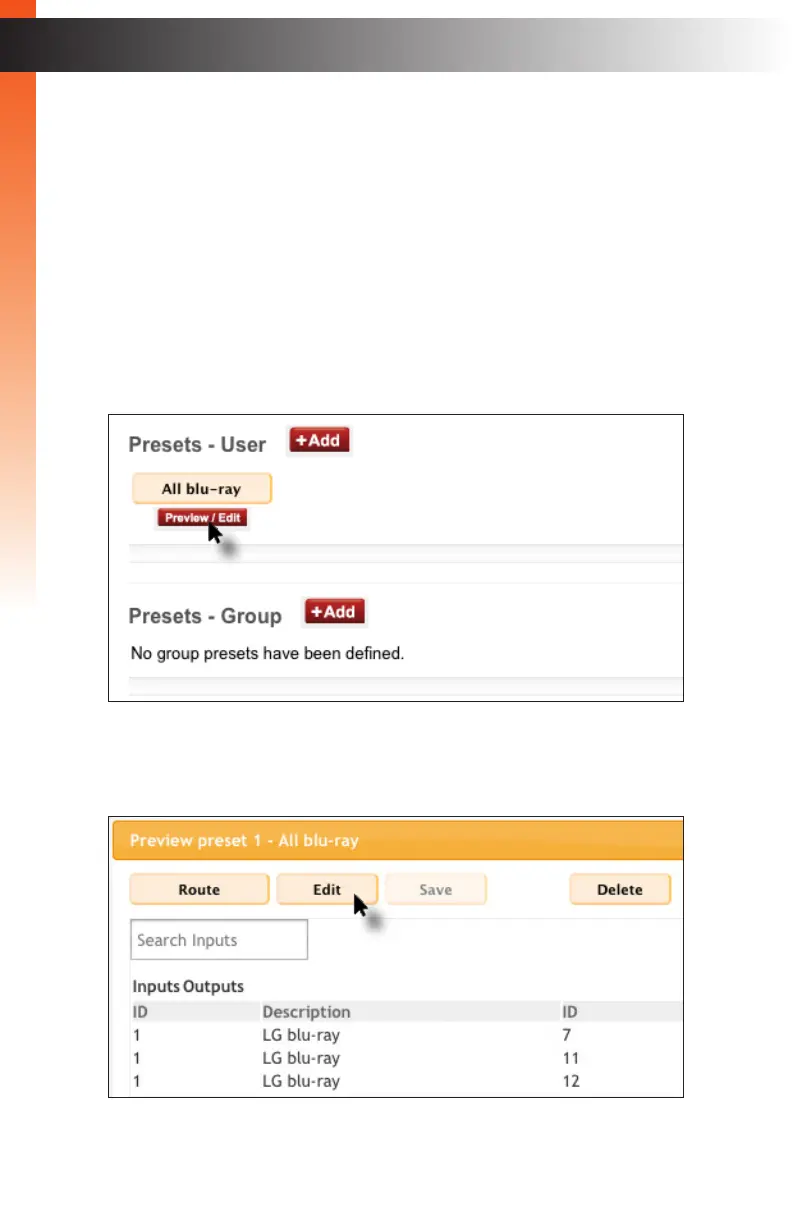

4. Click the Preview / Edit button under the preset (user or group) to be edited.
5. The Preview preset dialog will be displayed.
6. Click the Edit button.
