Routing Inputs to Outputs

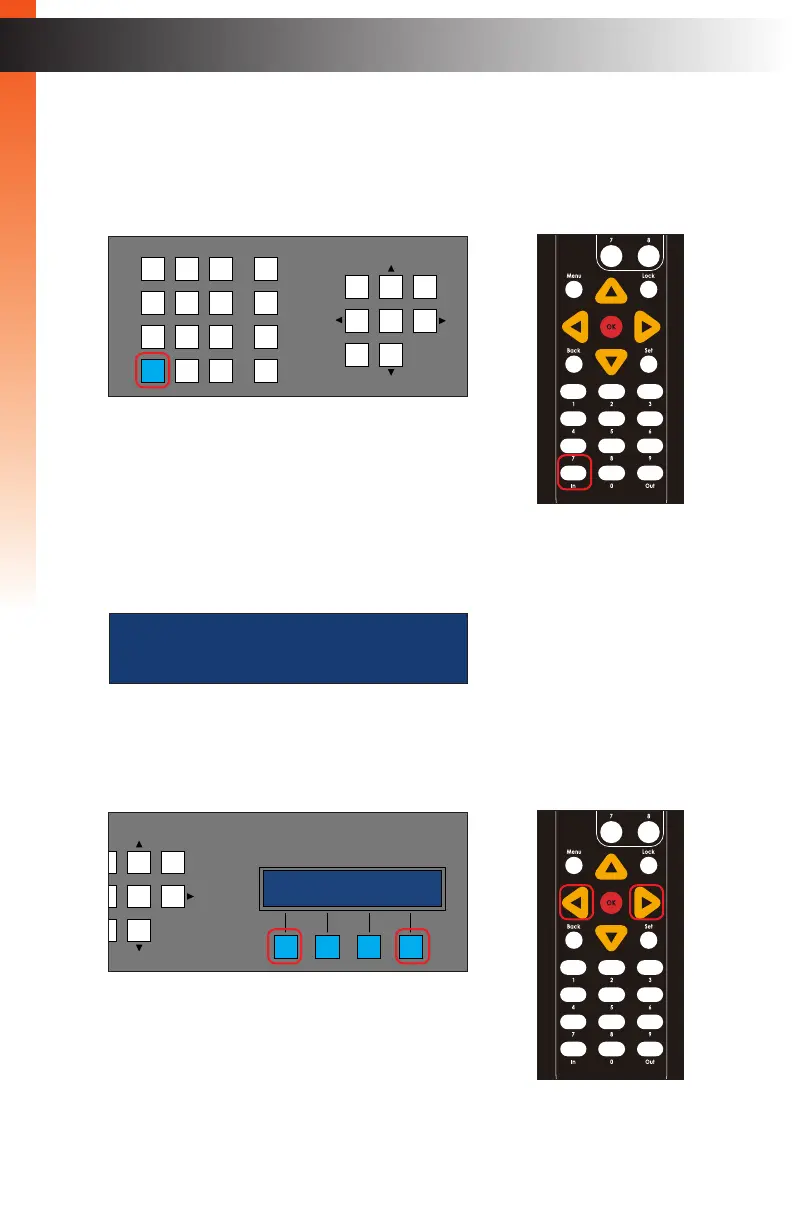

1. From the standby screen, press the In button. See Accessing the Menu System (page
75) for information on how to display the standby screen.
2. The four buttons under the Status window will glow solid blue and the group selection
screen will be displayed. The currently selected group is displayed in the top row.
3. Select the desired group using the << or >> soft buttons on the front panel or the
◄ or ► buttons on the IR remote control.
LAN
POE
5V DC
1 2
Matrix Controller
Status
IR
Power
Menu
1 2 3
4 5 6
7 8 9
In 0 Out Set
Clear
Mask
Preset
Back
OK
Lock
sales
(( back sel ))
Basic Operation
Menu System
sales
(( BACK SEL ))
LAN
POE
5V DC
1 2
Matrix Controller
Status
IR
Power
Menu
1 2 3
4 5 6
7 8 9
In 0 Out Set
Clear
Mask
Preset
Back
OK
Lock
OR
OR
Basic Operation
To Next Page
