page | 222
Appendix
Appendix

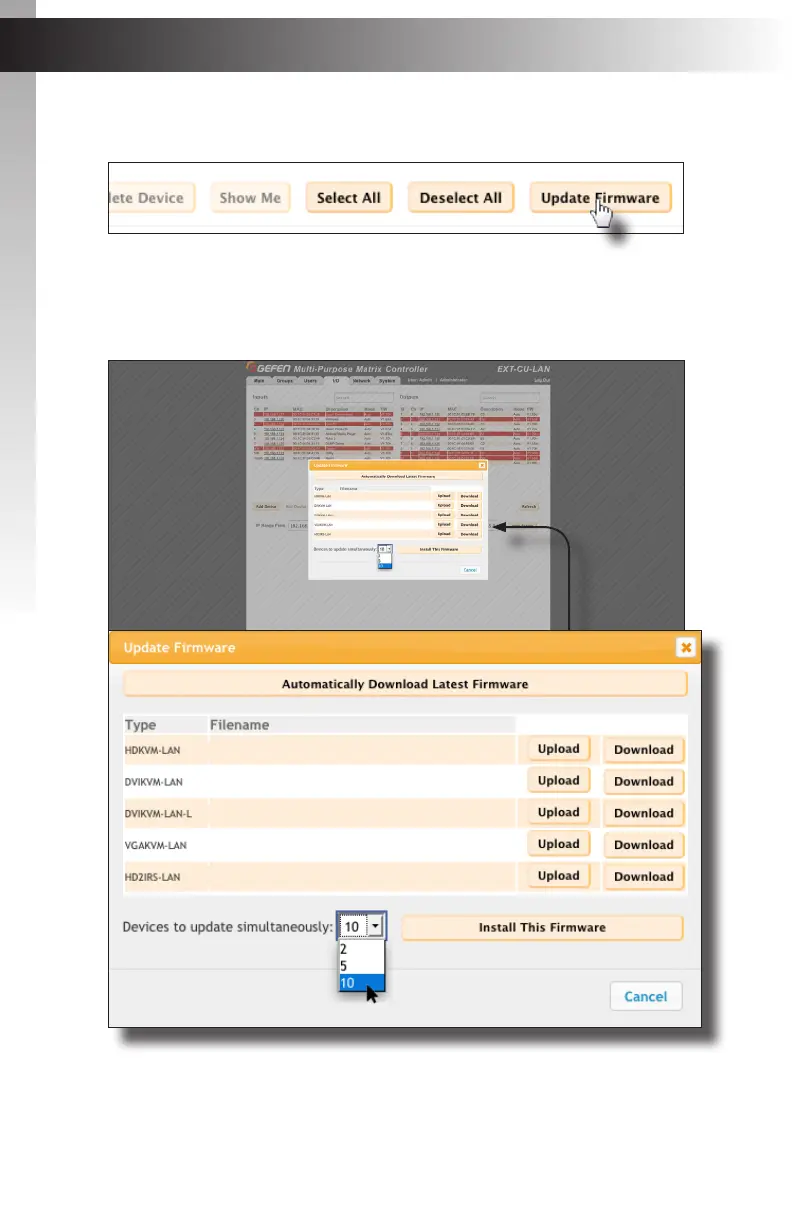

Firmware Update Procedure
4.
Click the
Update Firmware
button.
5.
The
Update Firmware
dialog will be displayed. Click the drop-down list next to
Devices to update simultaneously
to optionally select the number of devices to
update at once:
2
,
5
, or
10
. This step is optional.
