page | 57
5.

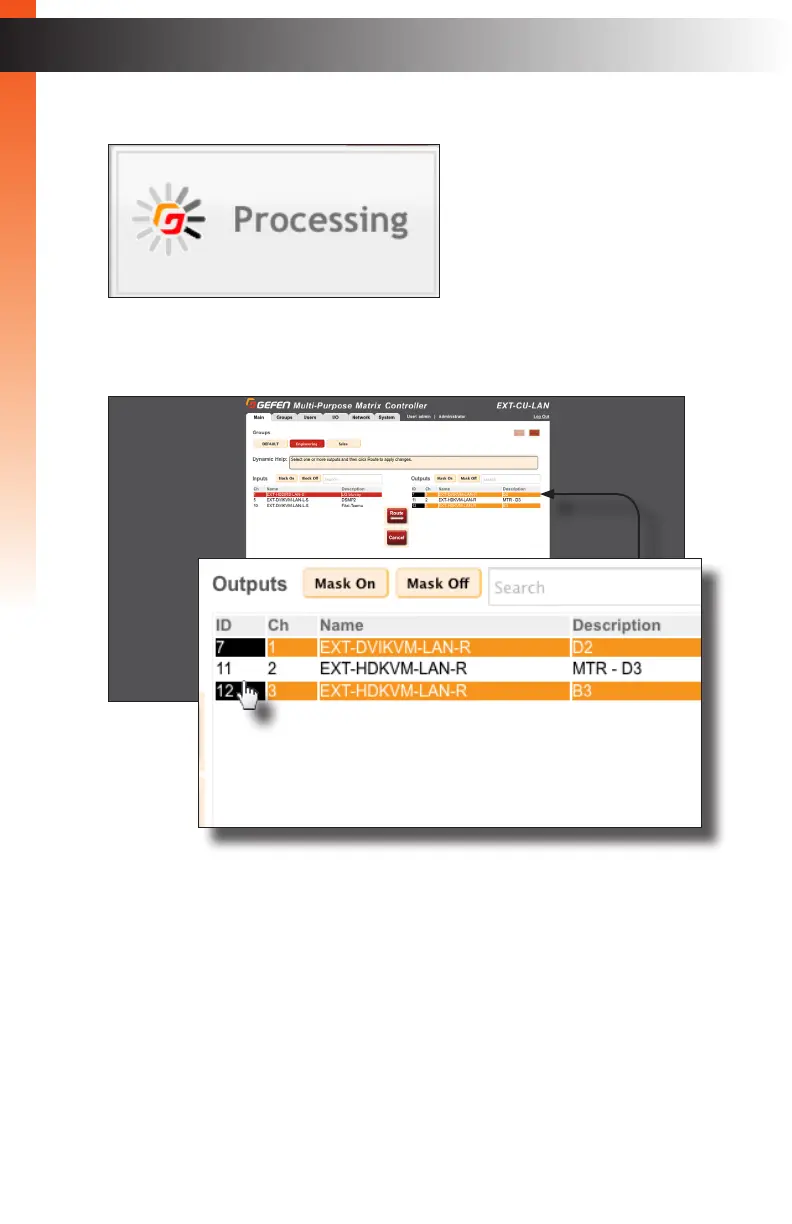

The following message box will be displayed, as the selected output is masked.
6.
Once the outputs are masked, a black rectangle will appear under the
Ch
column,
next to the selected outputs, as shown:
7.
T
o unmnask an output, select the masked output(s) and click the
Mask Off
button.
Basic Oper
ation
Routing
68
