page | 61
7.

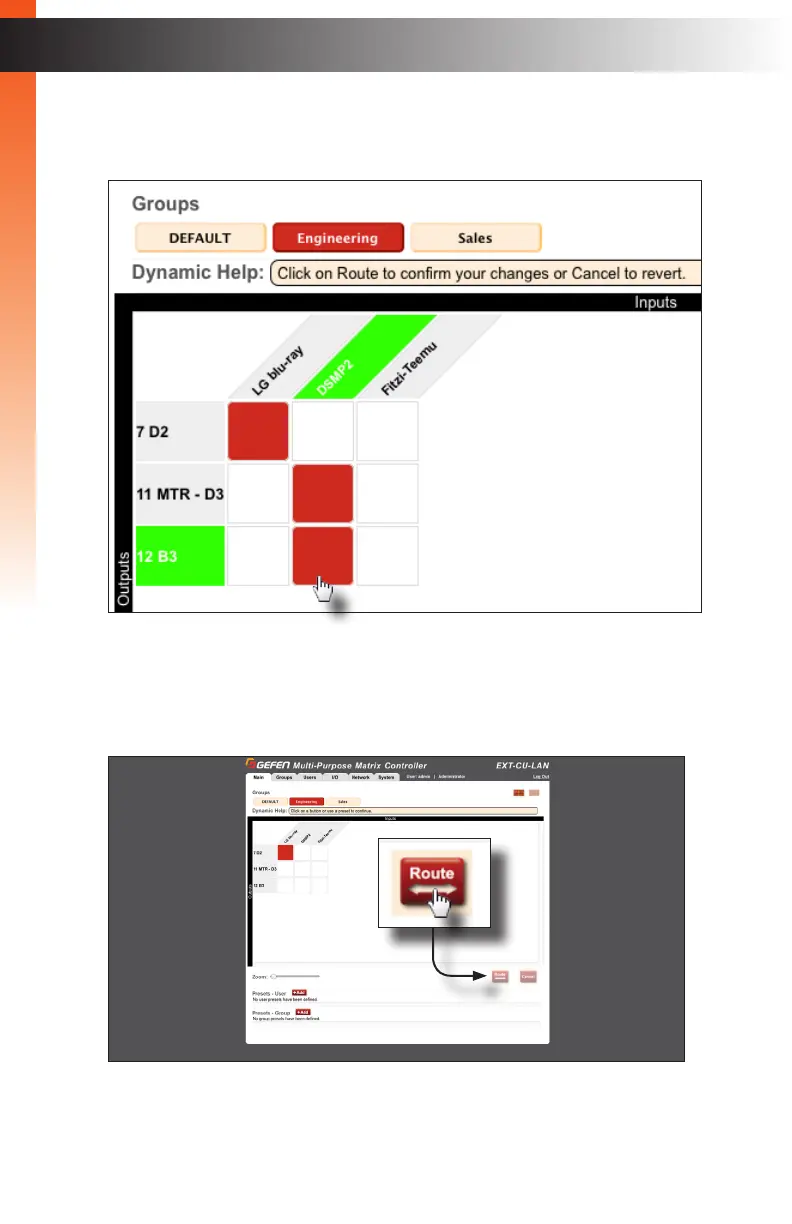

Select any additional inputs and outputs using the same process. In our example we
also wanted to route
DSMP2
to
12 B3
.
8.
After the desired inputs and outputs are selected, click the
Route
button in the
lower-left corner of the screen.
Basic Oper
ation
Routing
72
74
