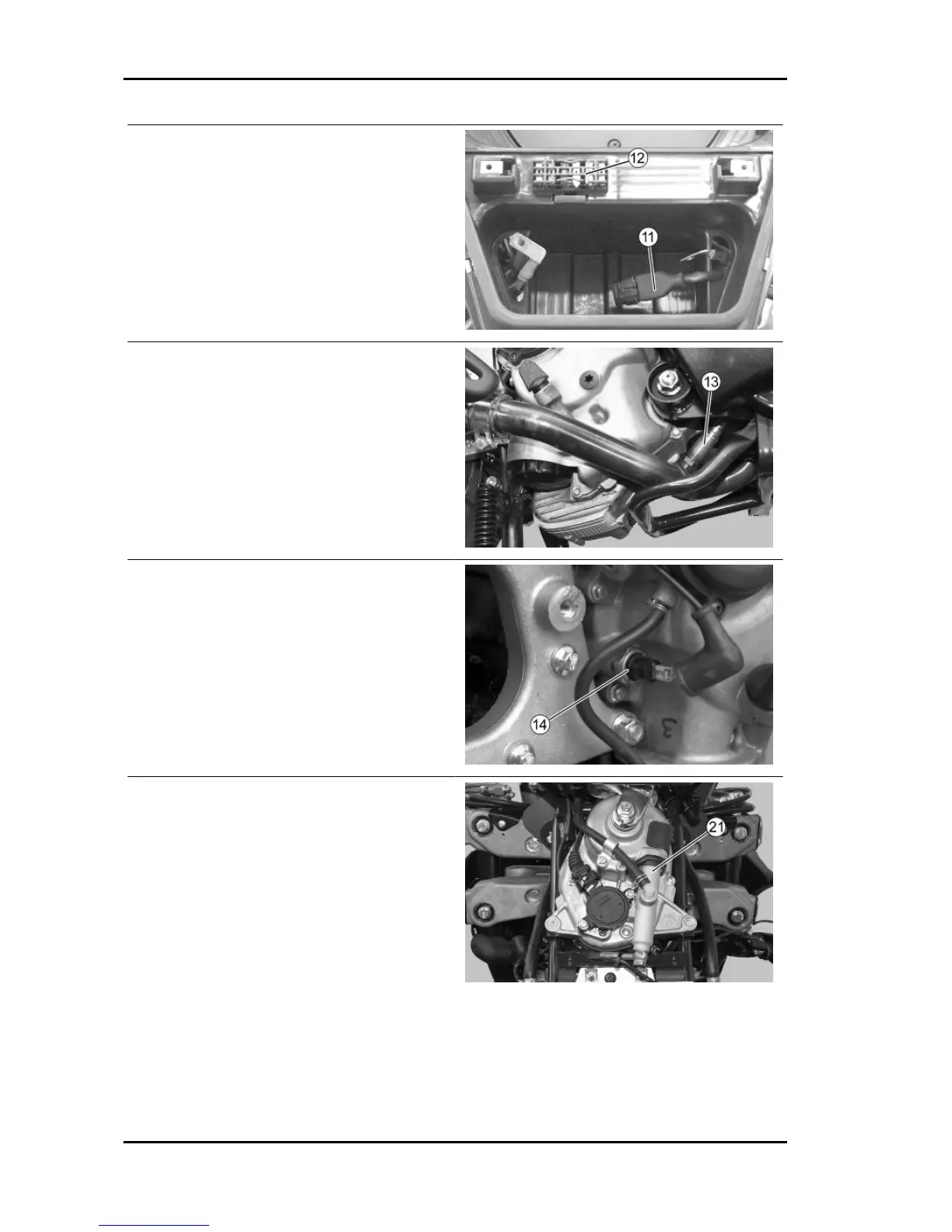

11 / 12 - Diagnostics socket/ main fuses: these
components are found in the helmet compartment.
13 - Lambda probe: The lambda probe is mounted
on the exhaust manifold.
14 - Engine oil pressure sensor: remove the ex-
haust end to reach it.
15 - Parking control unit: remove the front shield
to reach it.
