WR1000-UM-251–01–9380 6 – 32
6. INSPECTION AND CHECK PROCEDURES
Table 6-3-5
Sampling Interval
HDD MODD
8ch 20µs/50kHz 500 µs/2kHz
16ch 50µs/20kHz 1ms/1kHz
File Name C:\DEFAULT.DAT (any suitable filename)
Number of CH 8 or 16
Event On
(3) Use an oscillator to input sine waves at a frequency of about 5 Hz to each amp’s input terminals.
(4) Press the
START
key to initiate measurement.
The measured data starts being written to disk when the trigger is activated, so continue measurement
for about 10 seconds (about 20 seconds if writing to an MO disk) and then press the
STOP
key to stop
measurement.
(5) Press the
MEMORY
key twice to open the Data Replay Settings window, then set its parameters as
follows.

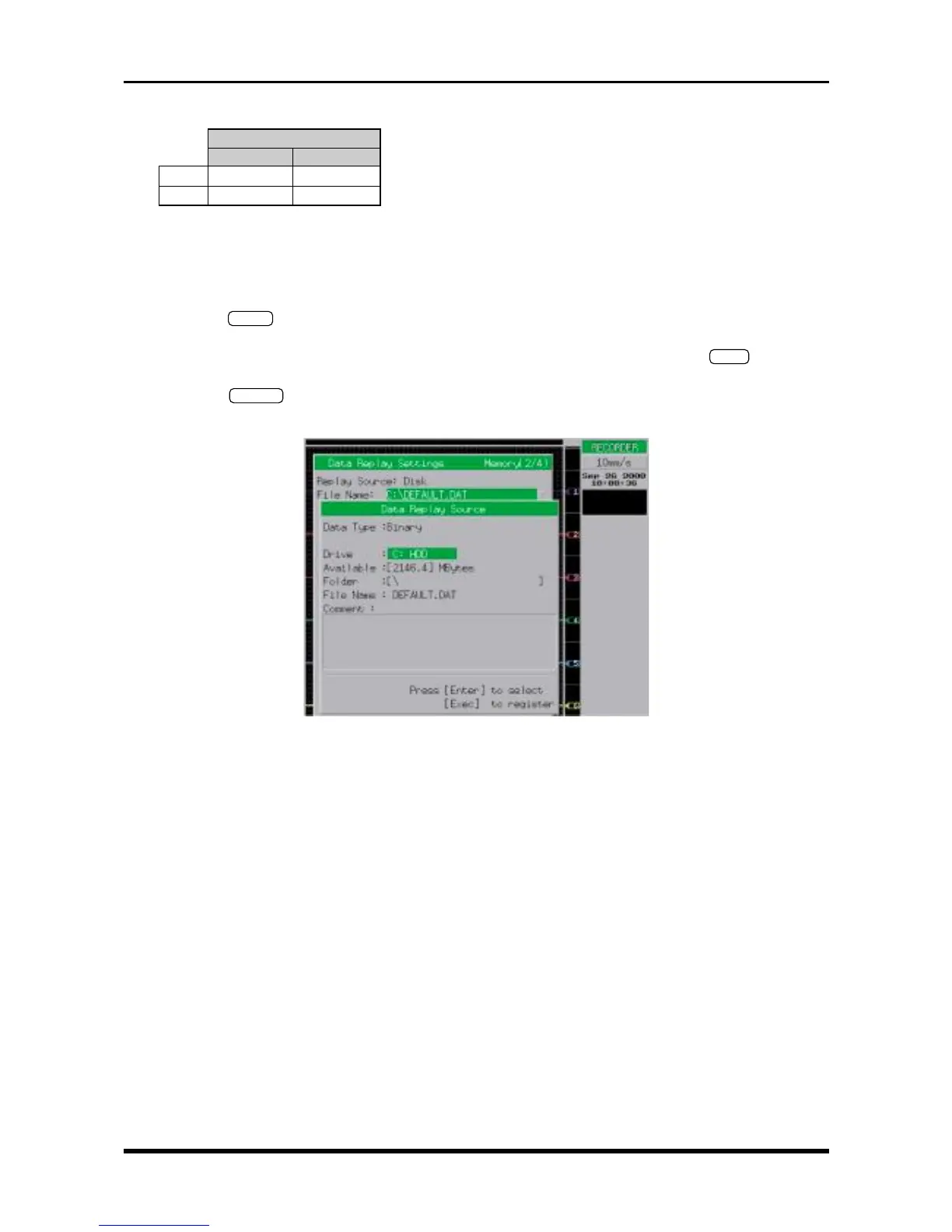

Fig. 6-3-11. Data Replay Settings window
Replay Source Disk
File Name Specify the same location and filename that you specified in Step (2)
