MAPLA- Modular energy supply system for load lifting magnets
iMAPLA system description
Generator and controller
5
1
2
3
4
6
11
7
8
9
10
1
Switch box with control electronics and generator controller
2
Connection for generator
3
Connection for MMI (RS232interface)
4
Connection for lifting magnet
5
Cooling element
6
Connection cable for the switch box
7
Fan wheel cover with the cooling air inlet
8
Drain hole for condensate water
9
Attachment bracket (both sides)
10
Drive shaft
11
Eyebolt for lifting

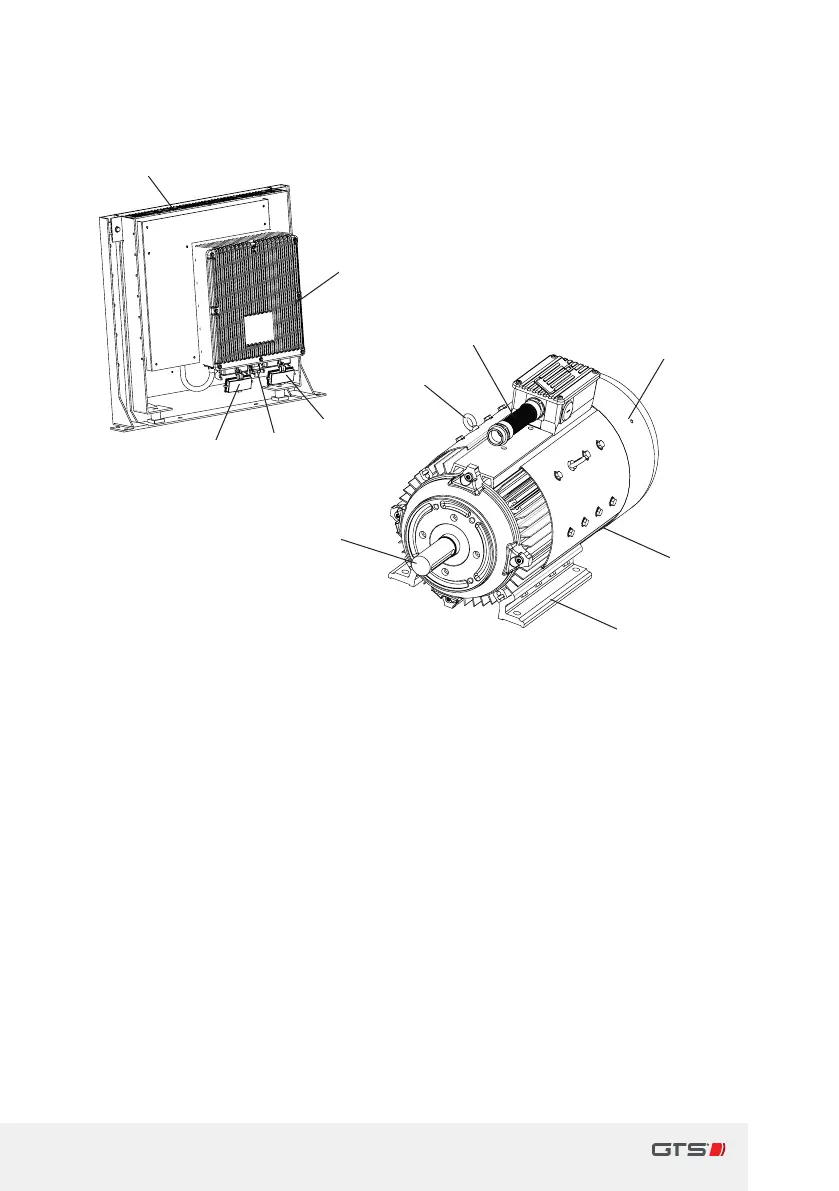

Fig. 10 Generator iMAPLA 25 “External Unit” (example)
