GTS iMAPLA series - Assembly Instructions for Belt Drive

Issue 08/2013 Page 84
MAPLA- Modular energy supply system for load lifting magnets
Installation and commissioning
Generator installation for iMAPLA 25and 30

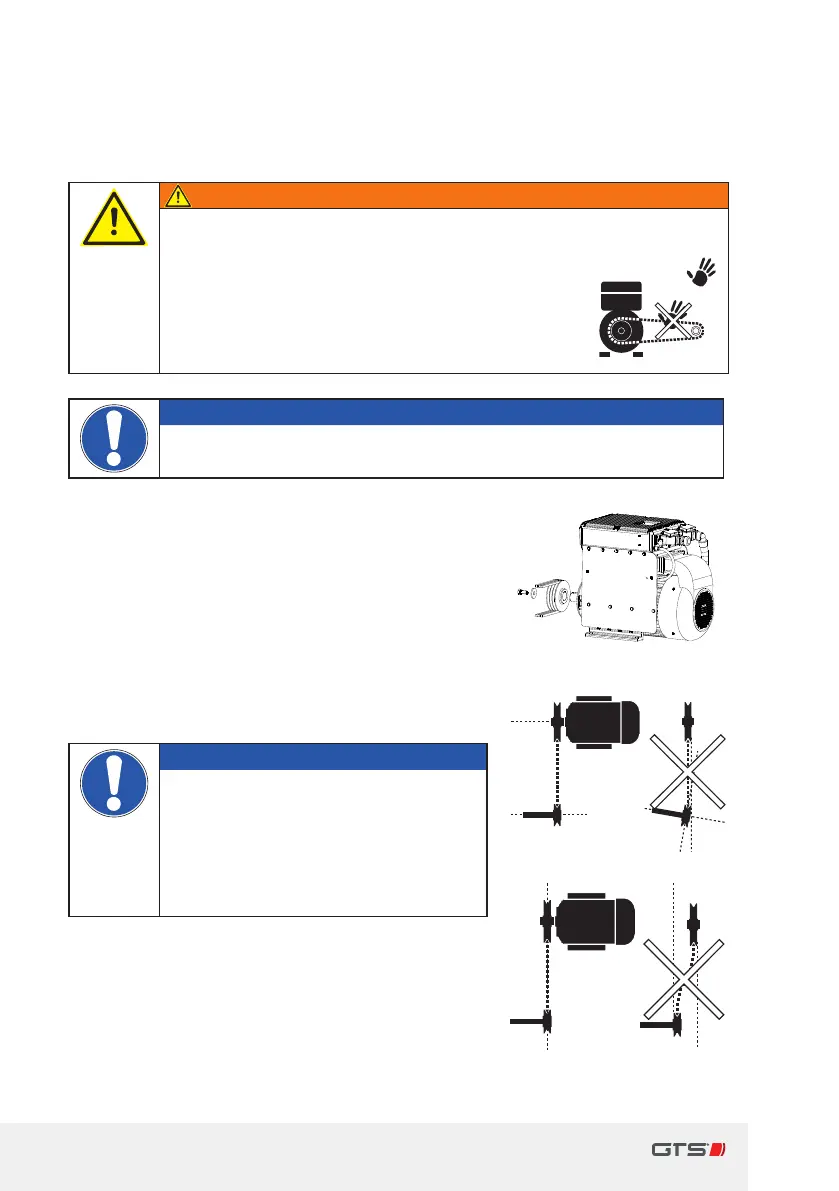

5.6.5 Assembly instructions for belt drive
Warning
Risk of accident
y
Open drive belts and pulleys are ahazard.
► Never operate the generator without
aprotective covering.
► Never reach into adrive belt while it is
running.
Important
► Do not strike the pulley on the shaft.
► Taper bushes are preferred for the attachment.
> Secure the belt pulley to the shaft with akey.
> Thread in ascrew into the end face of the
shaft to secure the belt pulley.
> Prevent this screw from being undone
accidentally by placing asuitable locking
washer underneath it.
> Threaded hole in the shaft: M16x 35mm.
> Tightening torque: M= 200Nm.
Important
► The axis of the power shaft must
run absolutely parallel to the axis
of the generator.
► The belt pulleys of both axes must
lie ush to each other so that the
belt runs absolutely straight.
