Page 43 Issue 08/2013
iMAPLA system description
Dimensions of the systems

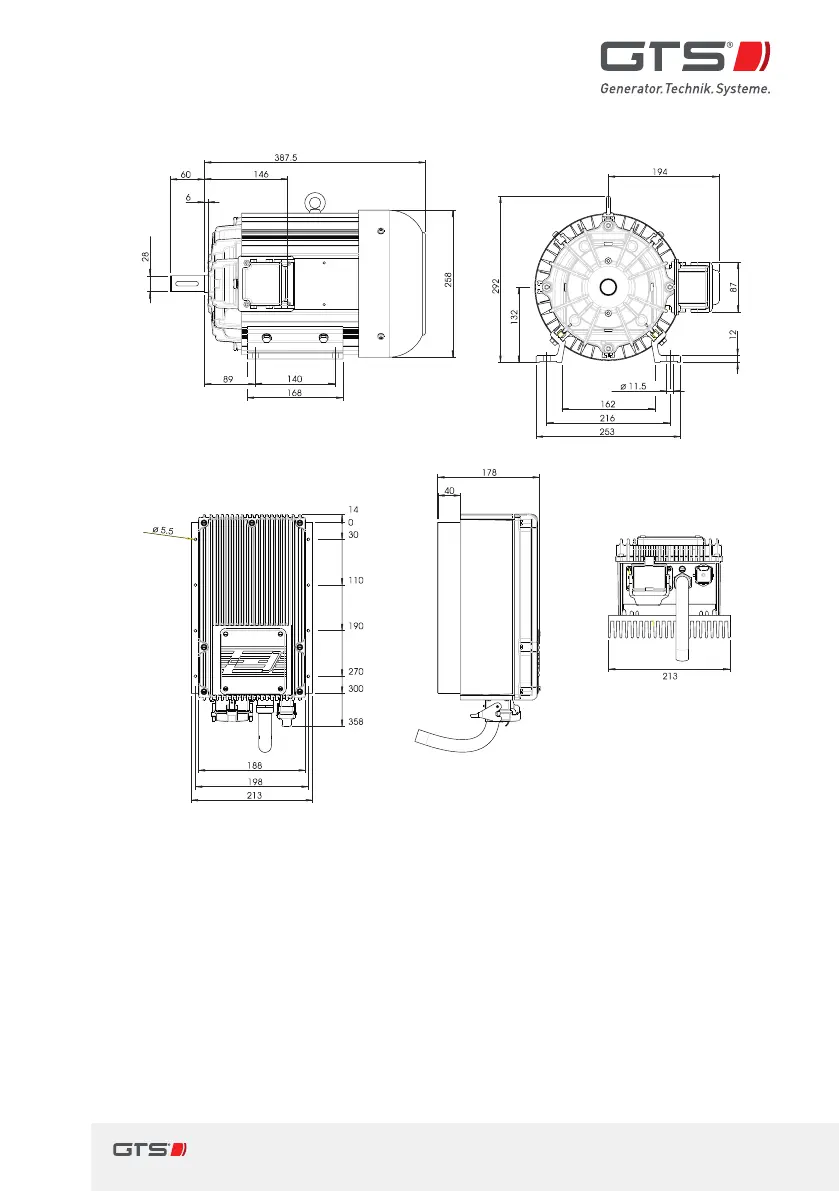

Fig. 18 Dimensioned drawing iMAPLA 8 “External Unit”
