GTS iMAPLA series - Fig. 23 Dimensioned Drawing Imapla 25 External Unit

Issue 08/2013 Page 48
MAPLA- Modular energy supply system for load lifting magnets
iMAPLA system description
Dimensions of the systems

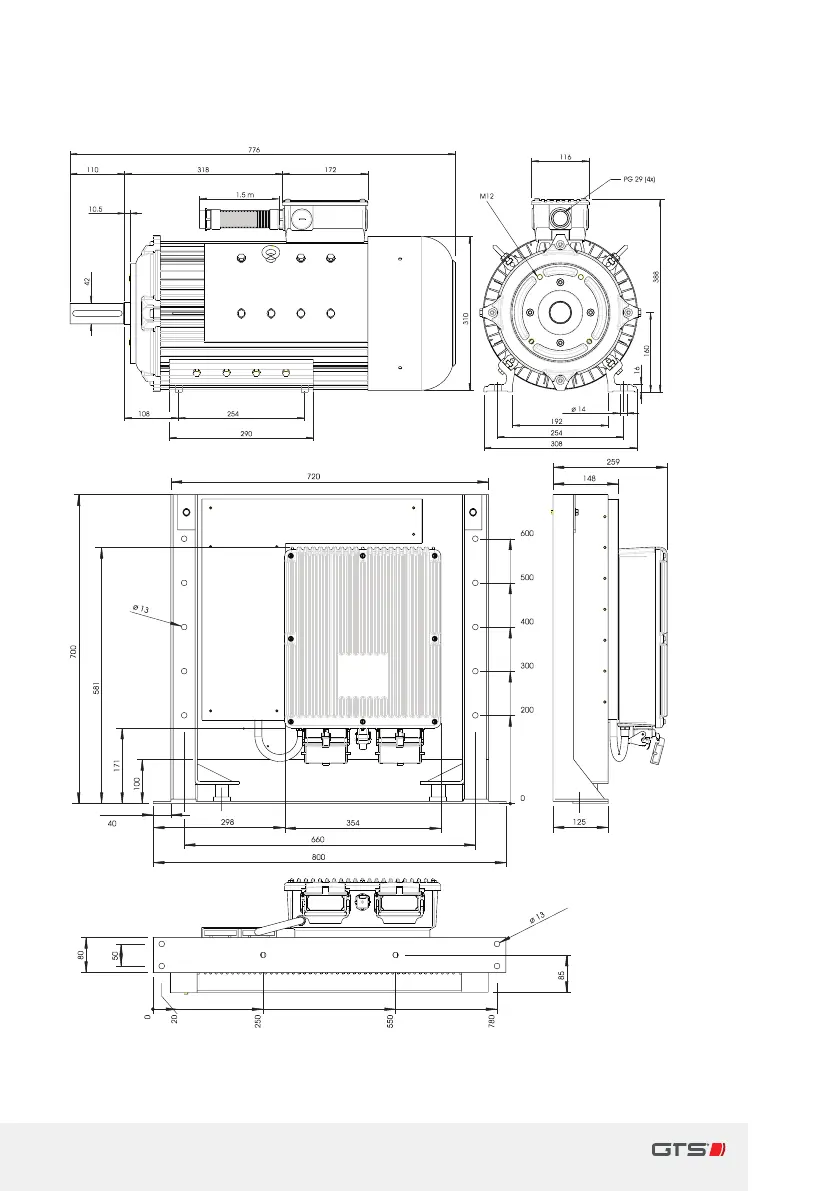

Fig. 23 Dimensioned drawing iMAPLA 25 “External Unit”
