GTS iMAPLA series - Assembly Instructions for Flange Mount SAE5; Fig. 27 Preparatory Disassembly of the Flange Mount (Imapla 8 and 13)

Issue 08/2013 Page 76
MAPLA- Modular energy supply system for load lifting magnets
Installation and commissioning
Generator installation for iMAPLA 8, 13, 17and 20
5.5.6 Assembly instructions for ange mount SAE5
Preparatory disassembly
Ö Fig. 27, Preparatory disassembly of the ange mount
(iMAPLA 8and 13), page76
> Unscrew two M8x 45screws[2], wrench size 10mm.
> Remove the collar[1].
> Unscrew and remove four screws M12x 12 [3], along with the washers.
1
2
3
(4x)

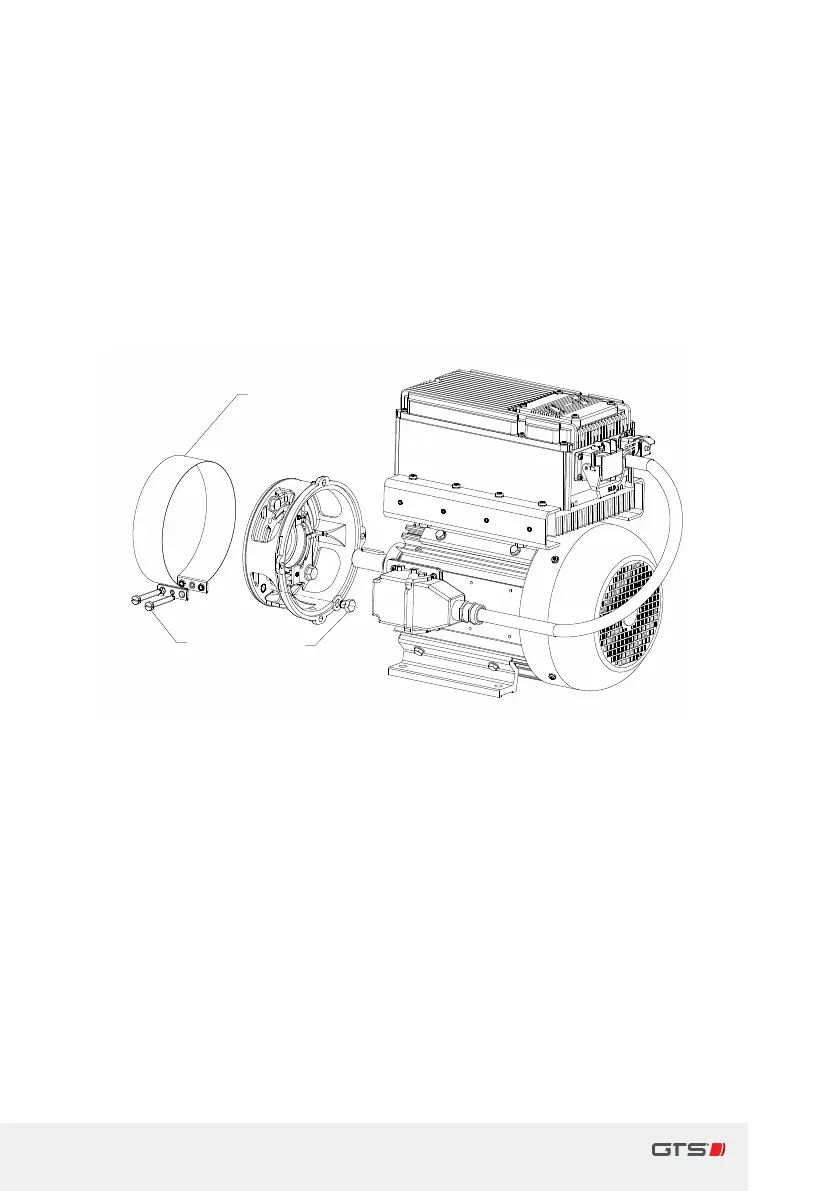

Fig. 27 Preparatory disassembly of the ange mount
(iMAPLA 8and 13)
Assembly
Ö Assembly of ange mount SAE5 (iMAPLA 8,13,17and 20), page77
> Place the ange[2] onto the generator and secure with four screws[4a].
Apply Loctite to the screw thread and place atoothed washer[4b]
underneath the screw head.
> Place the collar[2] and clamp securely with two screws.
> Mount the coupling plate[5] on the shaft at the generator and prevent it
from twisting on the shaft with akey.
