GTS iMAPLA series - GTS Type Designation and Identification; Rating Plate, Generator; Fig. 26 Example Rating Plate for a 13 Kw Imapla Generator

Page 53 Issue 08/2013
iMAPLA system description
GTS type designation and identication
4.10 GTS type designation and identication
The GTS MAPLA and iMAPLA series has arange of possibilities for identifying
the existing components and components in use. Normally, information
about the generation (iMAPLA or new iMAPLA 2013series) of the controller
(switch box) is needed for analysis or for ordering spare parts.
Note
If you have technical or service requests, please keep the serial
numbers of the controller and/or the generator to hand. The
type designation or order number is also useful for service
requests.
4.10.1 Rating plate, generator
Each GTS generator has arating plate which is securely attached in the
vicinity of the plug connection or corrugated pipe connection on the
housing prole. A6-character serial number is also stamped into the prole
housing of the generator.
1
2
3
4
5
6
7
8
9
1
ID number
2
Generator serial no.
3
Type designation
4
Magnetic voltage
5
Magnetic current
6
Nominal output
7
optimal generator speed
8
Order no.
9
Manufacturer: LOGO

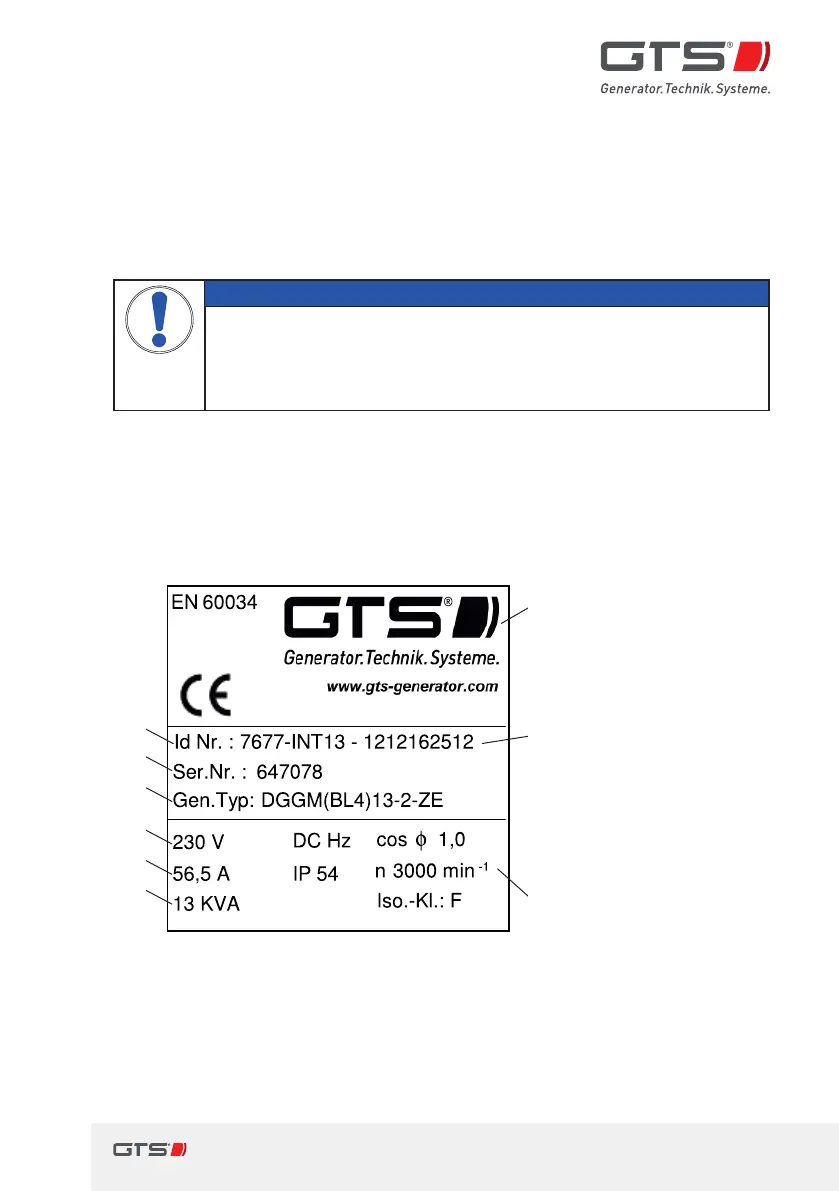

Fig. 26 Example rating plate for a13kW iMAPLA generator
