Page 153 Issue 08/2013
Options and accessories
MMI with radio modem
t=55mm
(with cover)

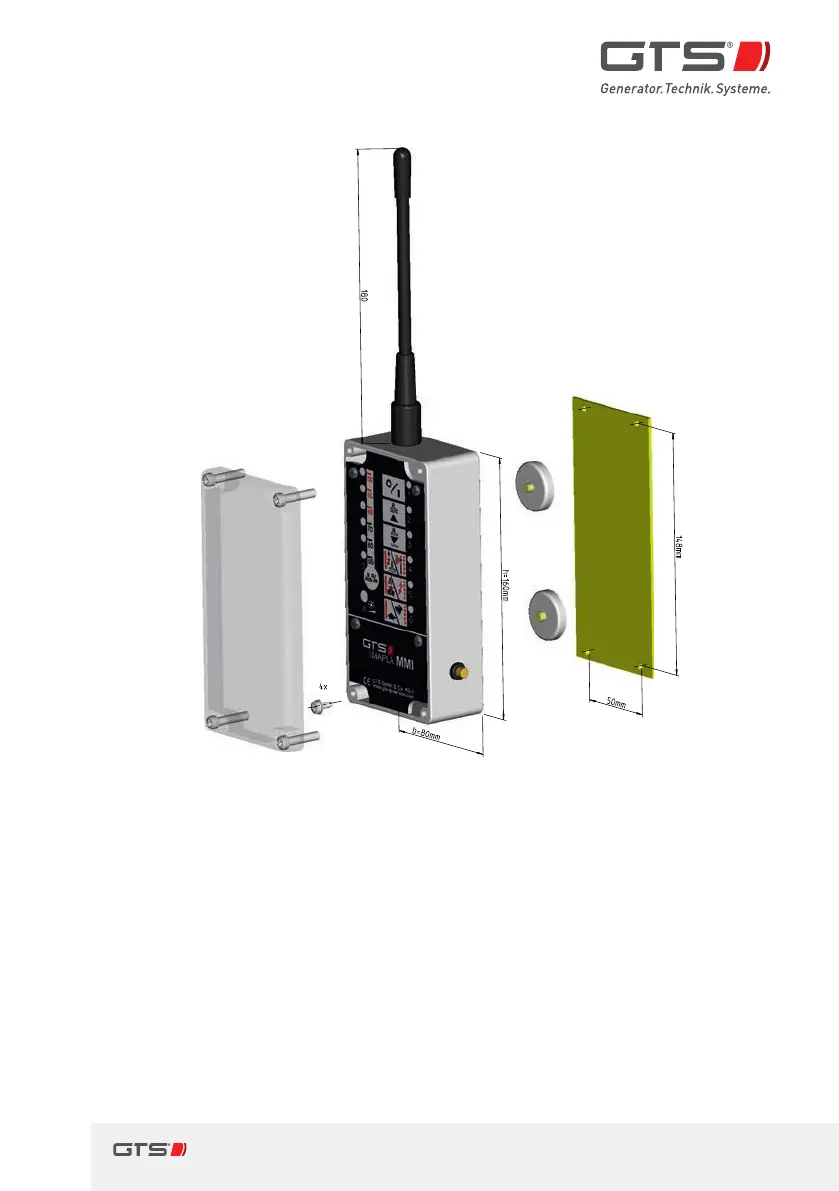

Fig. 37 Dimensions and fastening dimensions MMI and radio modem
11.1.7 Conguring the radio channel
Normally, the factory-congured radio channel does not need to be
changed.
To ensure safe wireless transmission when running multiple systems at
the same time, keep to amutual channel clearance between systems of at
least 5channels. When operating on adirectly adjacent channel, mutual
disturbance may arise at alow distance.
The radio channel is congured with software. More information is available
from the manufacturer.
