Issue 08/2013 Page 86
MAPLA- Modular energy supply system for load lifting magnets
Installation and commissioning
Generator installation for iMAPLA 25and 30
5.6.6 Assembly instructions for ange mount SAE5
Preparatory disassembly
Ö Fig. 30, Preparatory disassembly of the ange mount SAE5
(iMAPLA25and 30), page86
> Unscrew and remove four grub screws M12x 20 [1].
1(4x)

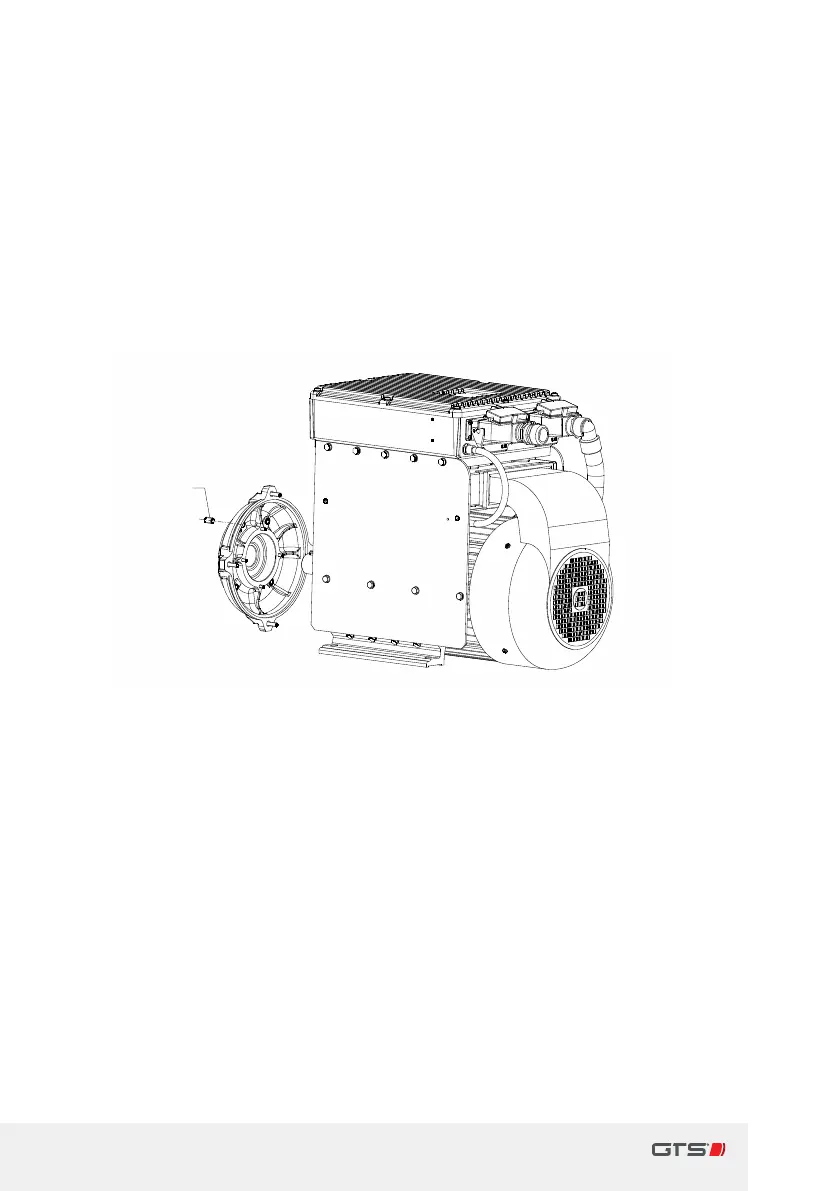

Fig. 30 Preparatory disassembly of the ange mount SAE5
(iMAPLA25and 30)
Assembly
Ö Fig. 31, Assembly of ange mount SAE5 (iMAPLA 25and 30), page87
> Place the ange[1] onto the generator and secure with four screws[2a].
> Apply Loctite to the screw thread and place atoothed washer[2b]
underneath the screw head.
> Mount the coupling plate[3] on the shaft at the generator and prevent it
from twisting on the shaft with akey.
