GTS iMAPLA series - Rules for Cable Installation; Requirements on the Connection Cables

Issue 08/2013 Page 66
MAPLA- Modular energy supply system for load lifting magnets
Installation and commissioning
Installation of cables
5.4.2 Rules for cable installation
Install all the cables according to the mechanical
requirements in away which prevents them from
getting damaged!
Secure the cables suciently according to the
requirements. Where necessary, provide suitable
strain relief!

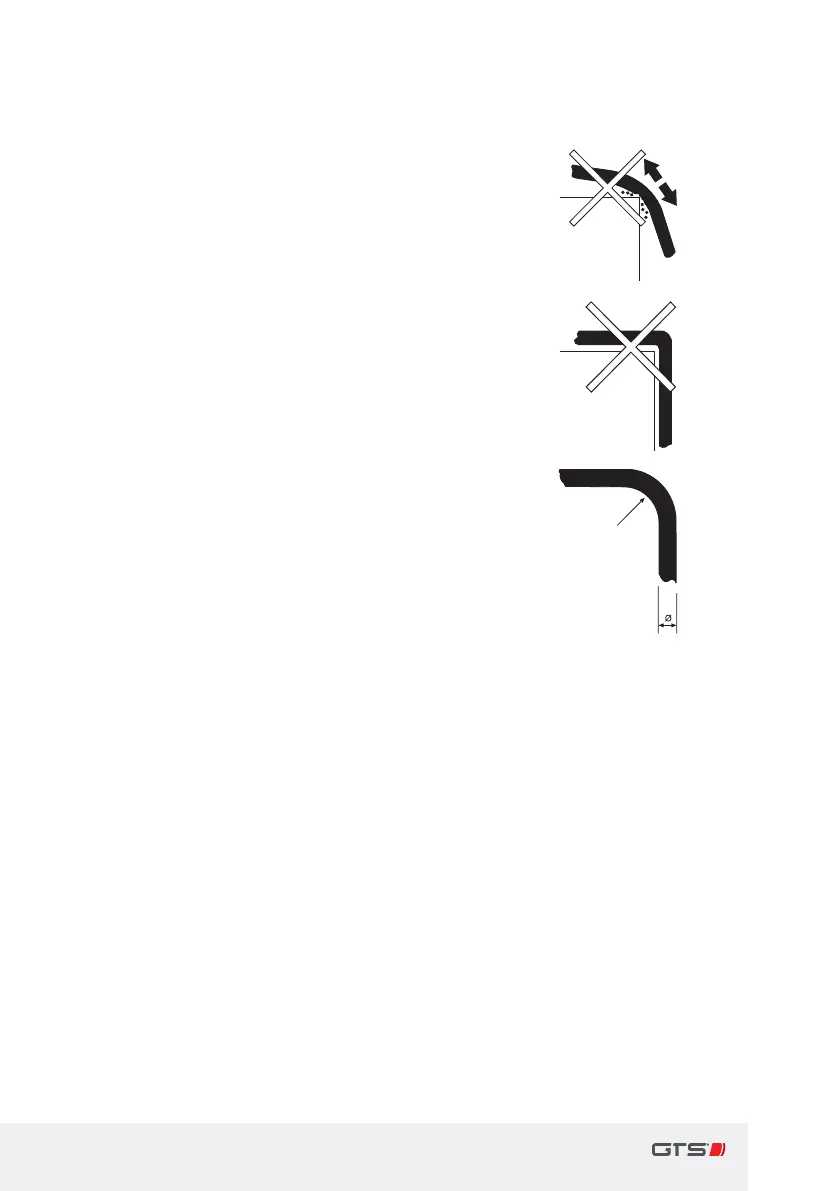

Do not install the cables without taking suitable
measures to protect them from damage or lay
them over edges with direct mechanical contact!
It is important that you observe the specied
minimum bending radius when installing the
cables!
Minimum bending radius
y With exible installation: R
min.
= 10x 0
y With permanent installation: R
min.
= 4x 0
5.4.3 Requirements on the connection cables
As usual, select all connection cables in accordance with the electrical and
mechanical requirements.
Only use the supplied cables which were pre-assembled in the factory, or
cable types expressly permitted by GTS.
Minimum requirements for the cables used
y UV-resistant,
y abrasion resistant,
y highly-exible,
y oil-resistant,
y resistant to high alternating bending stress.
