GTS iMAPLA series - Permissible Installation Positions; Assembly

Page 71 Issue 08/2013
Installation and commissioning
Generator installation for iMAPLA 8, 13, 17and 20

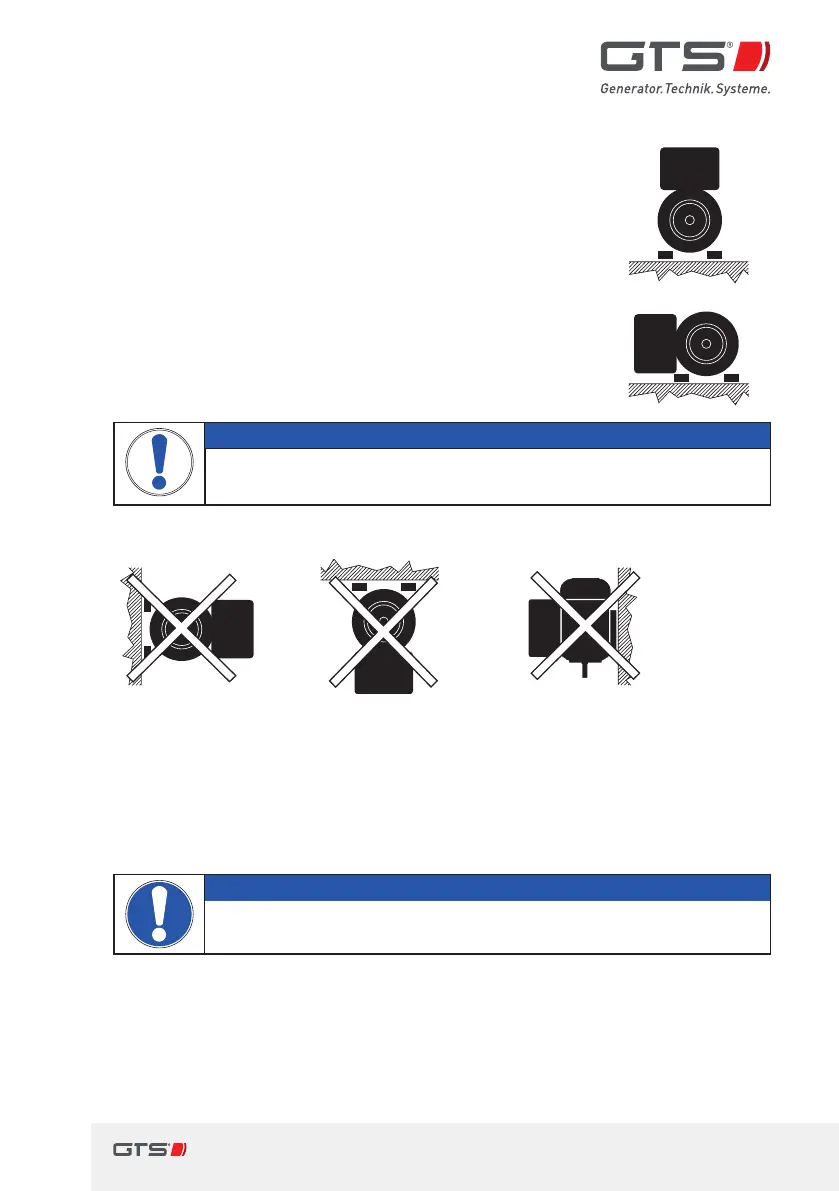

5.5.2 Permissible installation positions
The generator must be monitored on
ahorizontal surface standing on the
attachment brackets as shown.
In the normal installation position, the plug
attached to the generator lies on the side of the
generator. The generator can also be installed
rotated by 90° from the central position.
Note
y The generator can also be ordered with aswitch box and plug
connectors attached at an angle of 45°.
Other installation positions are not permitted.
5.5.3 Assembly
Note when assembling the generator in arotated position
Ö Permissible installation positions, page71
Assemble the two attachment brackets into the appropriate mounting
proles on the generator housing.
Important
y
Minimum clearances to the cooling unit must be kept.
Ö Minimum clearances and cooling provisions, page72
During assembly, observe the minimum clearances and specications for
cooling in the following chapter.
Ö Dimensions of the systems, page42
Ö Dimensions of the systems, page42
