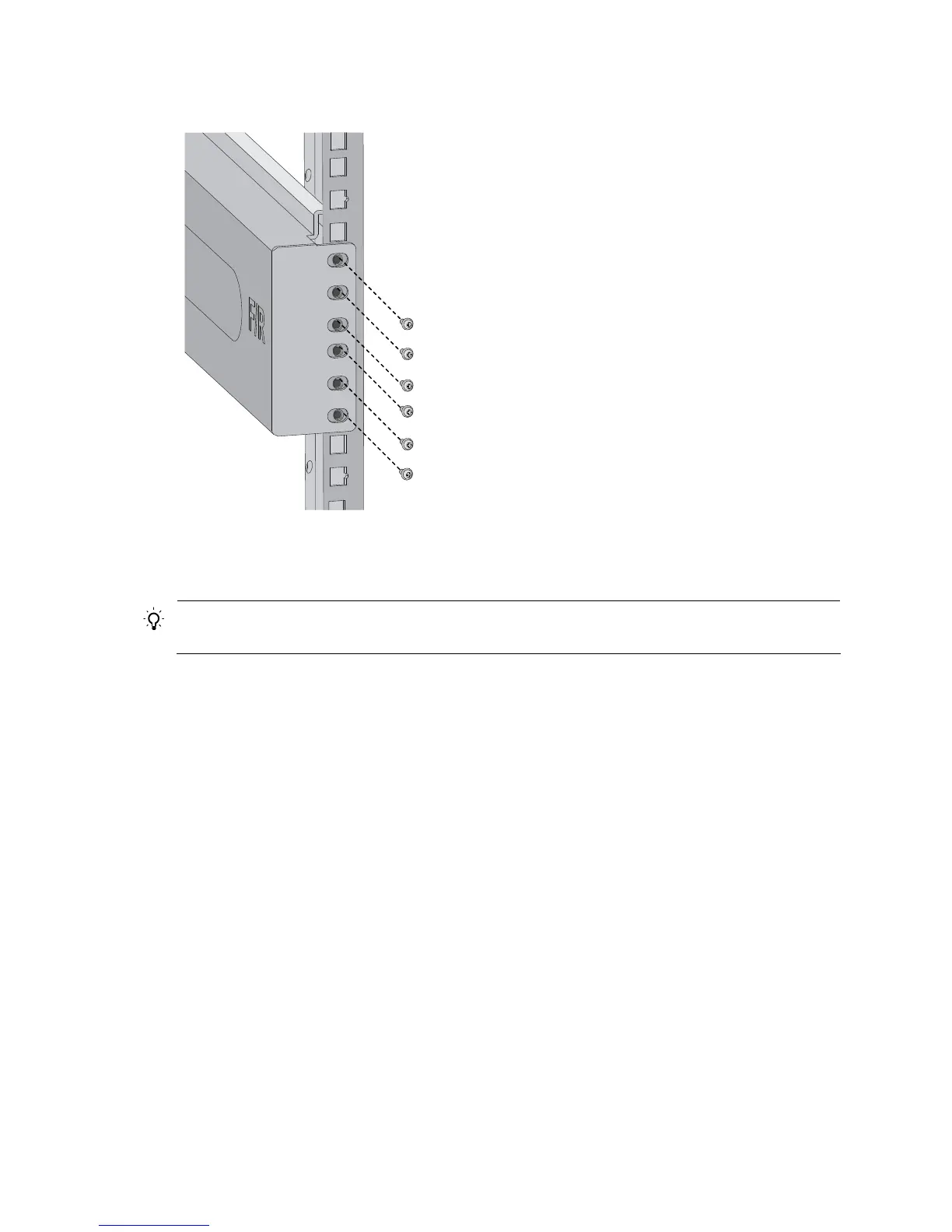

Figure 9 Fix the slide rail to the cage nuts with screws
Step5 Keep the slide rail horizontally and adjust its length until the installation holes on the rear end of the slide
rail touch the cage nuts on the rear rack post. Then fix them with screws.
TIP:
Fix all installation holes of the slide rail with screws to ensure its weight bearing capacity.
Step6 Repeat Step4 and Step5 to install the other slide rail. Make sure the two slide rails are at the same height
so that the device can be placed on them horizontally.
Figure 10
shows the installed slide rails.
