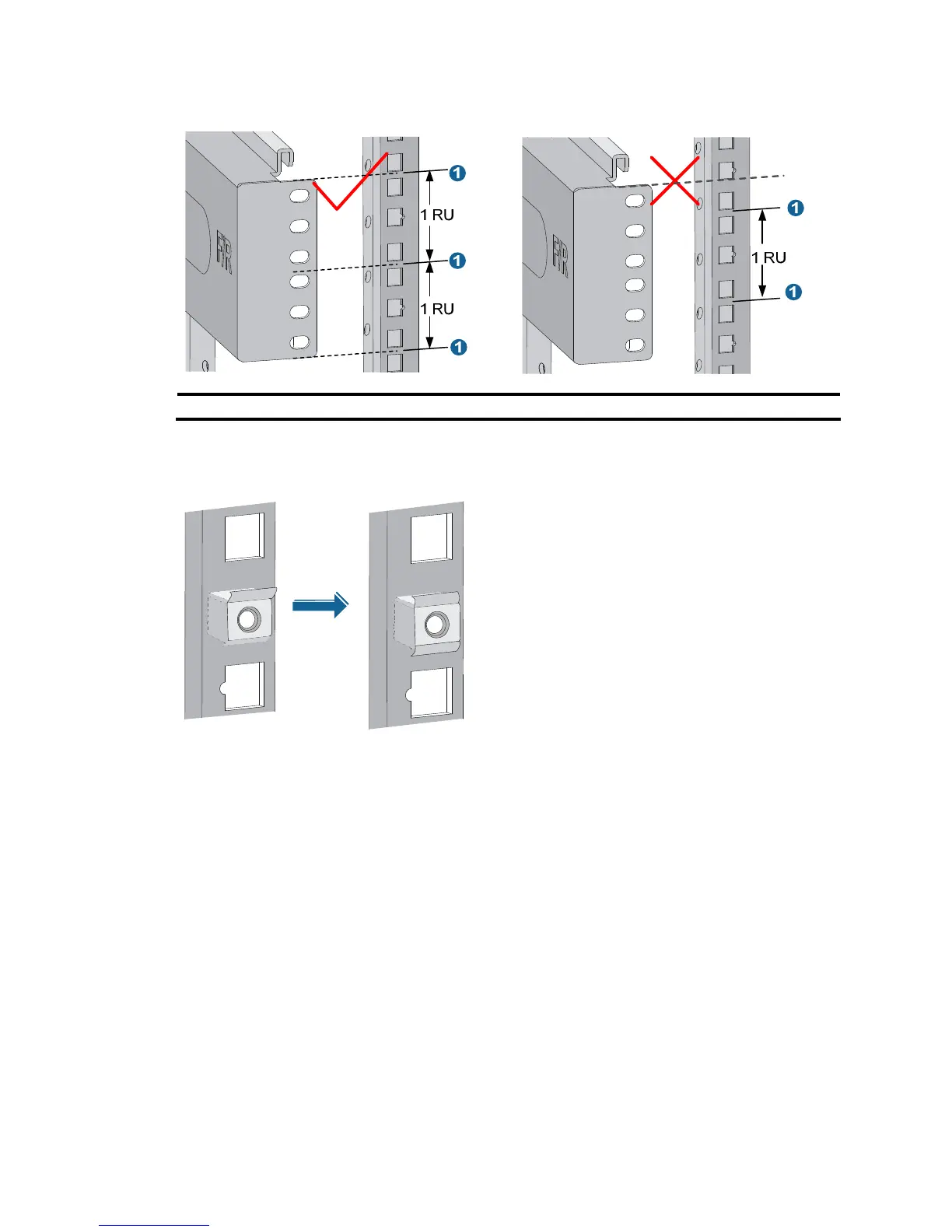

Figure 7 Locate the position on the rack for installing the slide rail
1: Middle of the narrower metal area between holes
Step3 Install six cage nuts on the square holes on each rack post, as shown in Figure 8.
Figure 8 Install a cage nut
Step4 Align the installation holes on the front end of the slide rail with the cage nuts on the front rack post, and
fix them with screws, as shown in Figure 9.
