20

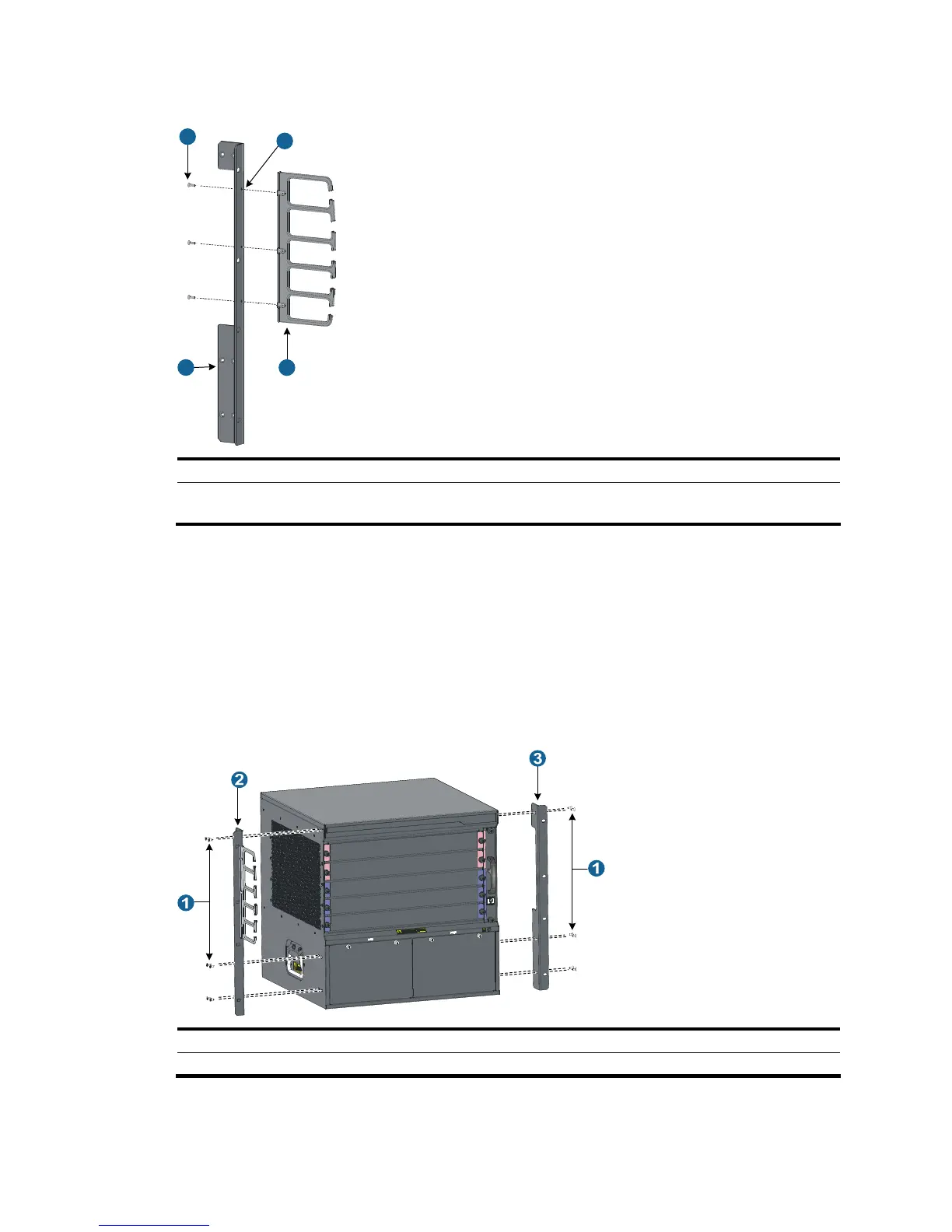

Figure 13 Install the cable management bracket to the left mounting bracket
1 2
3
4
1: Left mounting bracket 2: Cable management bracket
3: Screw hole for installing the cable management
bracket
4: Screw for fixing the cable management bracket to
the left mounting bracket
Installing the mounting brackets
Before installing the switch to the rack, install the mounting brackets to the chassis, as shown in Figure 14.
• S7506E-V: Facing the front of the switch, mount the left and right mounting bracket to the two sides
of the switch.
• Other models: Facing the front of the switch, mount the mounting bracket with a cable management
bracket to the left of the switch, and mount the mounting bracket without a cable management
bracket to the right of the switch (where the fan tray is located).
Figure 14 Install the mounting brackets (S7503E)
1: Screws for fixing the mounting brackets to the chassis 2: Left mounting bracket
3: Right mounting bracket
