Step1 Install a bail latch on the power module. Insert the two ends of the bail latch to the slots on the left of the
power socket. Then pull the bail latch to the left.
Step2 Take the power cable out of its package, and make sure of the power cable model (both the PSR320-A
and PSR650-A use a 10 A AC power cable).
Step3 Plug the power cable to the power socket, and ensure a good contact.
Step4 As shown in callout 6 on Figure 24, pull the bail latch to the right to retain the power cable.
Step5 Plug the other end of the power cable to the AC power socket.
Step6 Switch on the power module.
Step7 Check the power module status LED. If the LED is green, the power cable is properly connected. If the LED
is off or red, power off the power module, check the installation, and solve the problem. Then switch on
the power module and check that the LED is green. For description of PSR320-A/PSR650-A status LEDs,
see the chapter “Appendix C LEDs.”

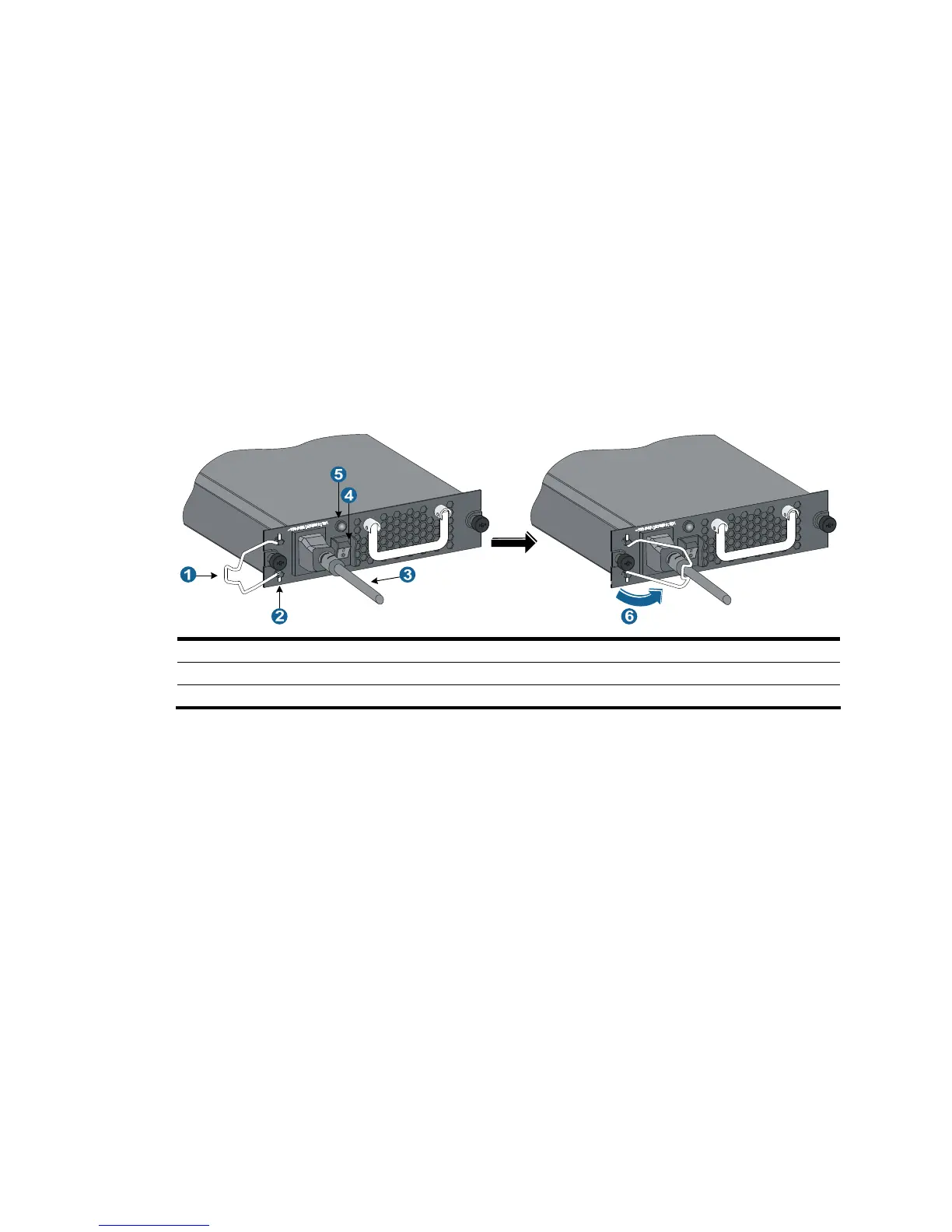

Figure 24 Connect the PSR320-A/PSR650-A power cable
1: Bail latch 2: Bail latch slot
3: Power cable 4: Power switch (O: off; —: on)
5: power module LED 6: Pull the bail latch to the right to retain the power cable
Connecting the PSR1400-A power cable
Follow these steps to connect the PSR1400-A power cable:
Step1 Take the power cable out of its package, and make sure of the power cable model (the PSR1400-A uses
a 16 A AC power cable).
Step2 Use a Phillips screwdriver to remove the screws from the power cable retainer suite and remove the right
part of the retainer suite.
Step3 Plug the power cable to the power socket on the power module, and ensure a good contact.
Step4 Fasten the right part of the power cable retainer to lock the power cable.
Step5 Plug the other end of the power cable to the AC power socket.
Step6 Check the power module input status LED (INPUT). If the LED is green, the power cable is properly
connected. If the LED is off or red, check the installation, and solve the problem. Then switch on the
power module to verify that the LED is green. For description of PSR1400-A status LEDs, see the chapter
“Appendix C LEDs.”
