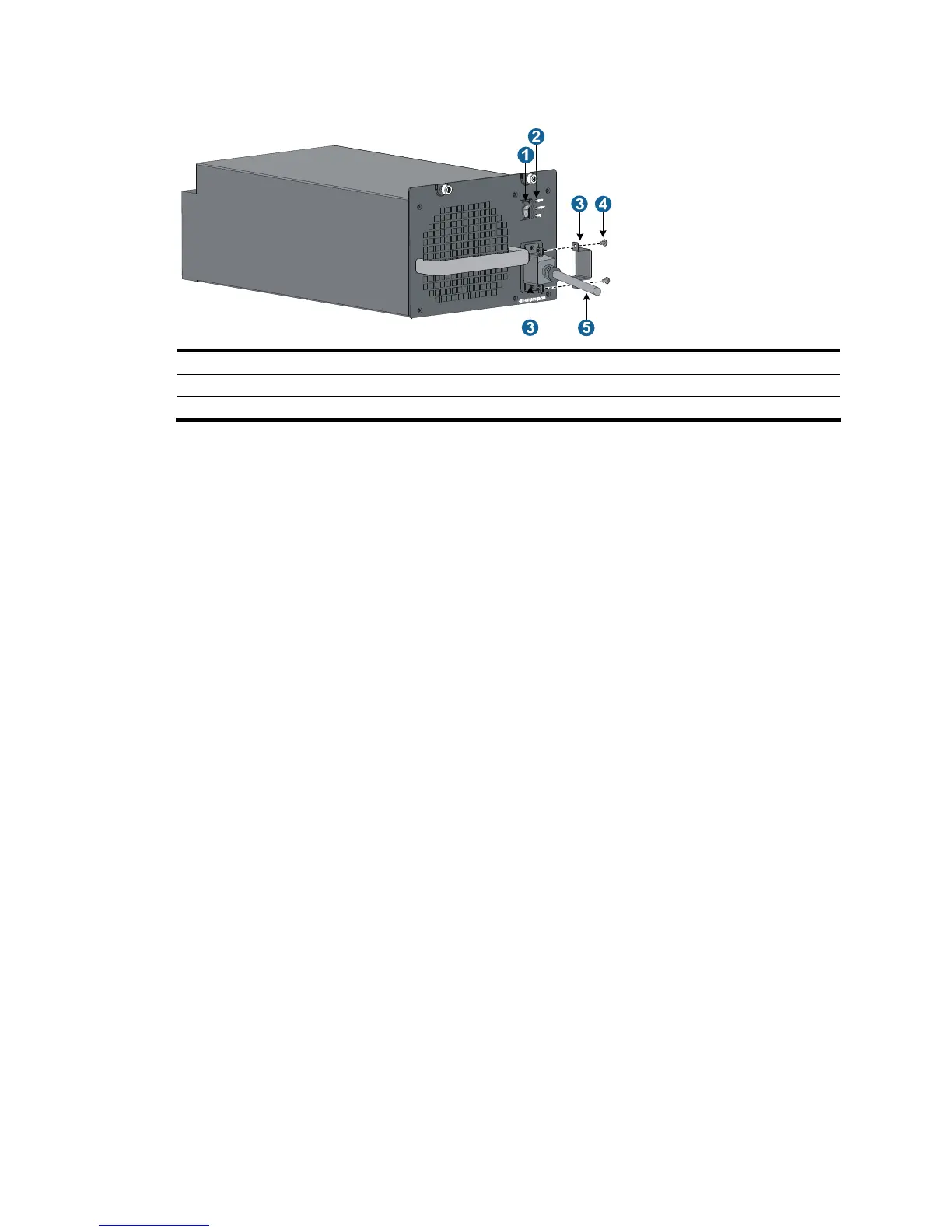

Figure 25 Connect the PSR1400-A power cable
1: Power switch (O: off; —: on) 2: Power module LED
3: Power cable retainer suite 4: Screw
5: AC power cable
Connecting the PSR2800-ACV power cable
The PSR2800-ACV is a built-in power module with AC input and DC output. It can provide the switch with
both system power and PoE power, which can be controlled through separate power switches. Before
connecting the PSR2800-ACV power cable, make sure that the system and PoE power switches are off.
The PSR2800-ACV provides two power sockets:
• One system power socket, as shown in callout 2 on Figure 26.
• One P
o
E power socket, as shown in callout 6 on Figure 26.
Th
e methods for connecting the system power cable and PoE power cable are similar to connecting the
PSR1400-A power cable. For more information, see “Connecting the PSR1400-A power cable.”
