34

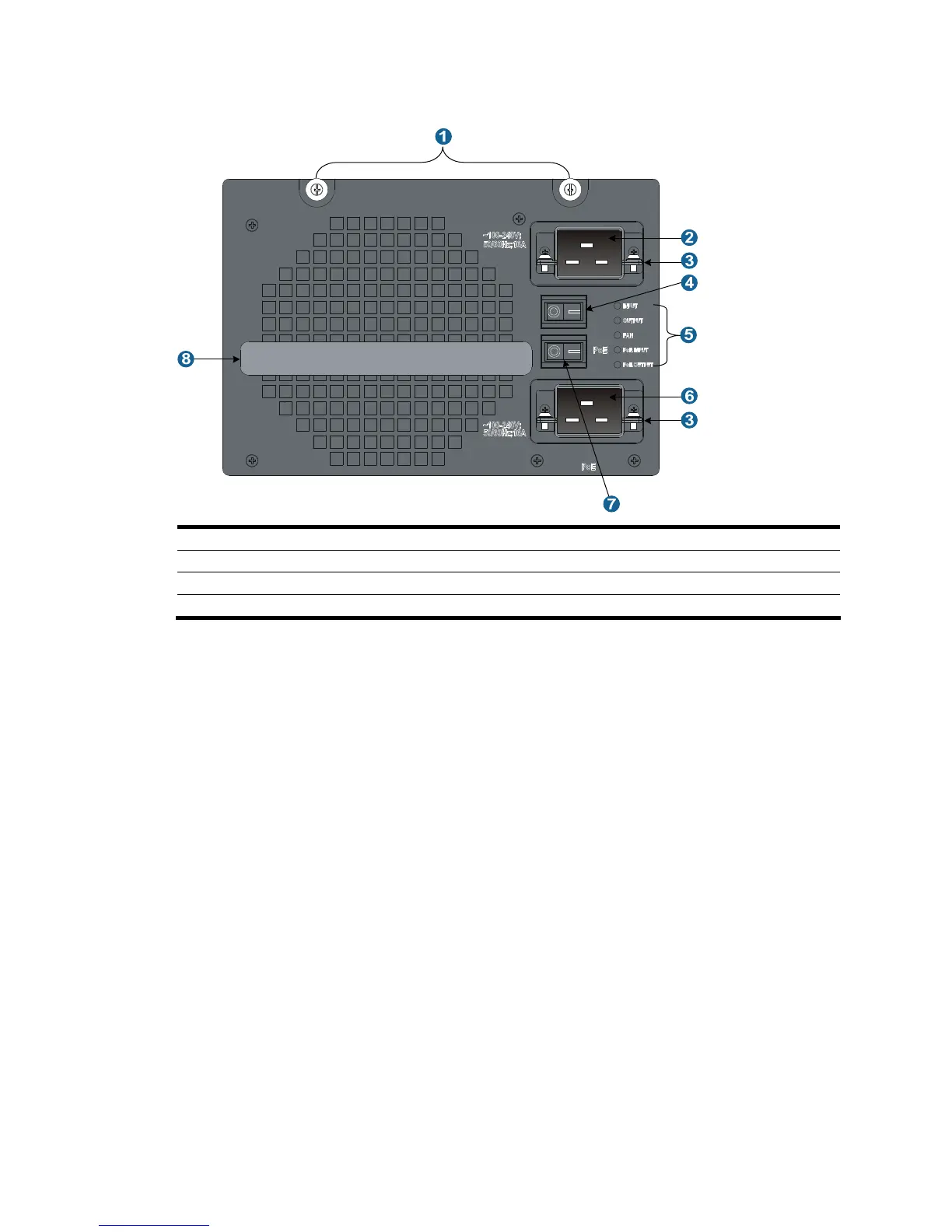

Figure 26 PSR2800-ACV panel
1: Captive screw 2: System power socket
3: Power cable retainer suite 4: System power switch (O: off; —: on)
5: Power module status LED 6: PoE power socket
7: PoE power switch (O: off. —: on) 8: Power module handle
Connecting the PSR6000-ACV power cable
The PSR6000-ACV is a built-in power module with AC input and DC output. It can provide the switch with
both system power and PoE power, which can be controlled through separate power switches. Before
connecting the PSR6000-ACV power cable, make sure that the system and PoE power switches are off.
The PSR6000-ACV provides four power sockets:
• One system power socket, as shown in callout 5 onFigure 27.
• T
h
ree PoE power sockets, as shown in callout 8 onFigure 27.
Co
nnecting the system power cable is the same as the PoE power cable. The following illustrates how to
connect the system power cable.
