36

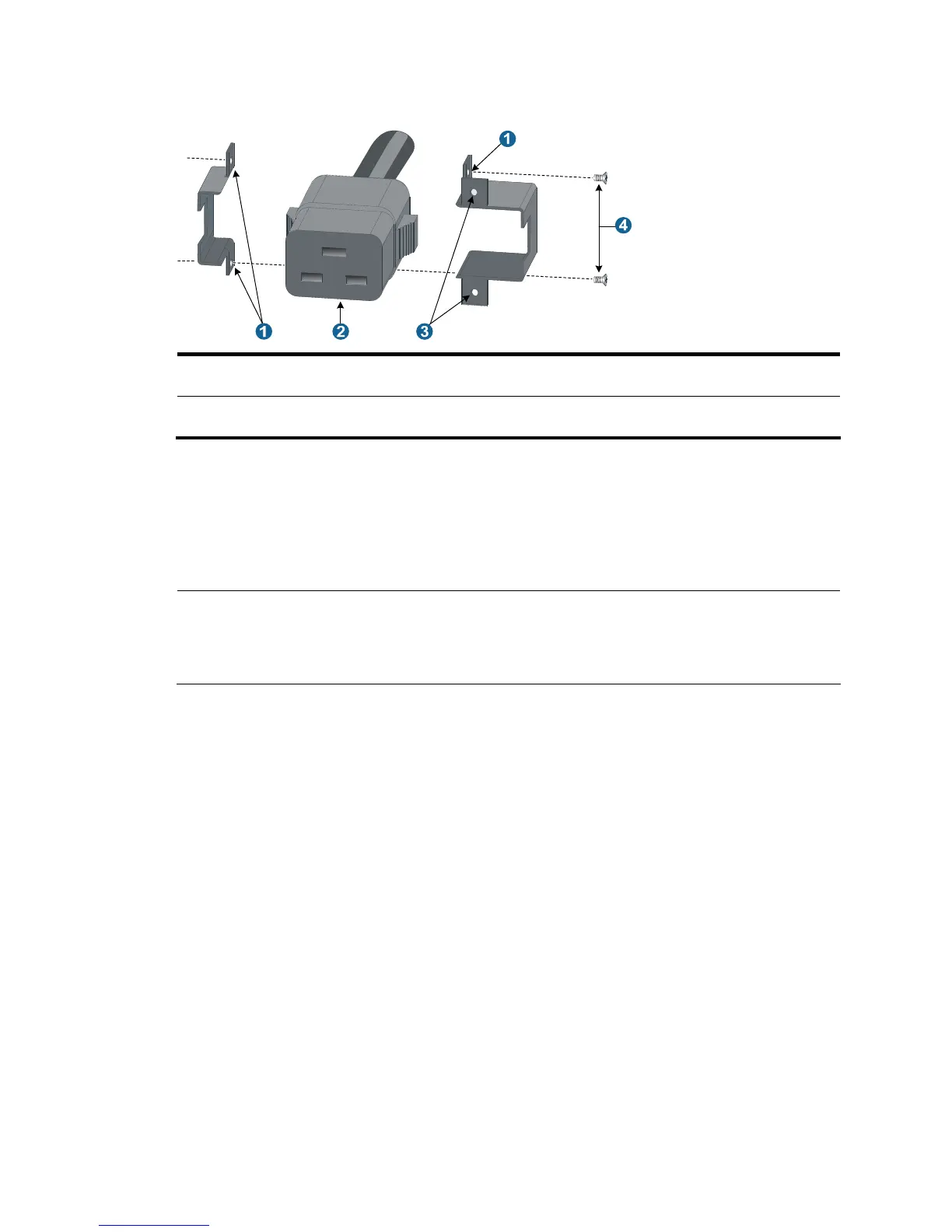

Figure 28 Attach the power cable retainer suite
1: Fastening screw holes for left and right parts of the
retainer suite
2: Power cable plug
3: Fastening screw holes for the retainer suite and
power module
4: Fastening screws for left and right parts of the
retainer suite
After attaching the power cable retainer suite to the power cable, connect the power cable to the
PSR6000-ACV.
Follow these steps to connect the power cable to the PSR6000-ACV:
Step1 Plug the power cable into the power socket of the power module. The screw holes on the right part of the
retainer suite should be aligned with those on the power module.
NOTE:
If you cannot align the screw holes on the retainer suite with those on the power module, pull the cable
retainer suite outwards, rotate it by 180 degrees, and push it in until it is fixed. Then, you can align the
screw holes on the retainer suite with those on the power module.
Step2 Use a No. 1 Phillips screwdriver to fasten the power cable retainer suite to the power module.
Step3 Plug the other end of the power cable to the AC power socket.
Step4 Check the power module input status LED (SYS IN). If the LED is green, the power cable is properly
connected. If the LED is off or red, check the installation, and solve the problem. Then switch on the
power module to verify that the LED is green. For description on PSR6000-ACV status LEDs, see the
chapter “Appendix C LEDs.”
