57

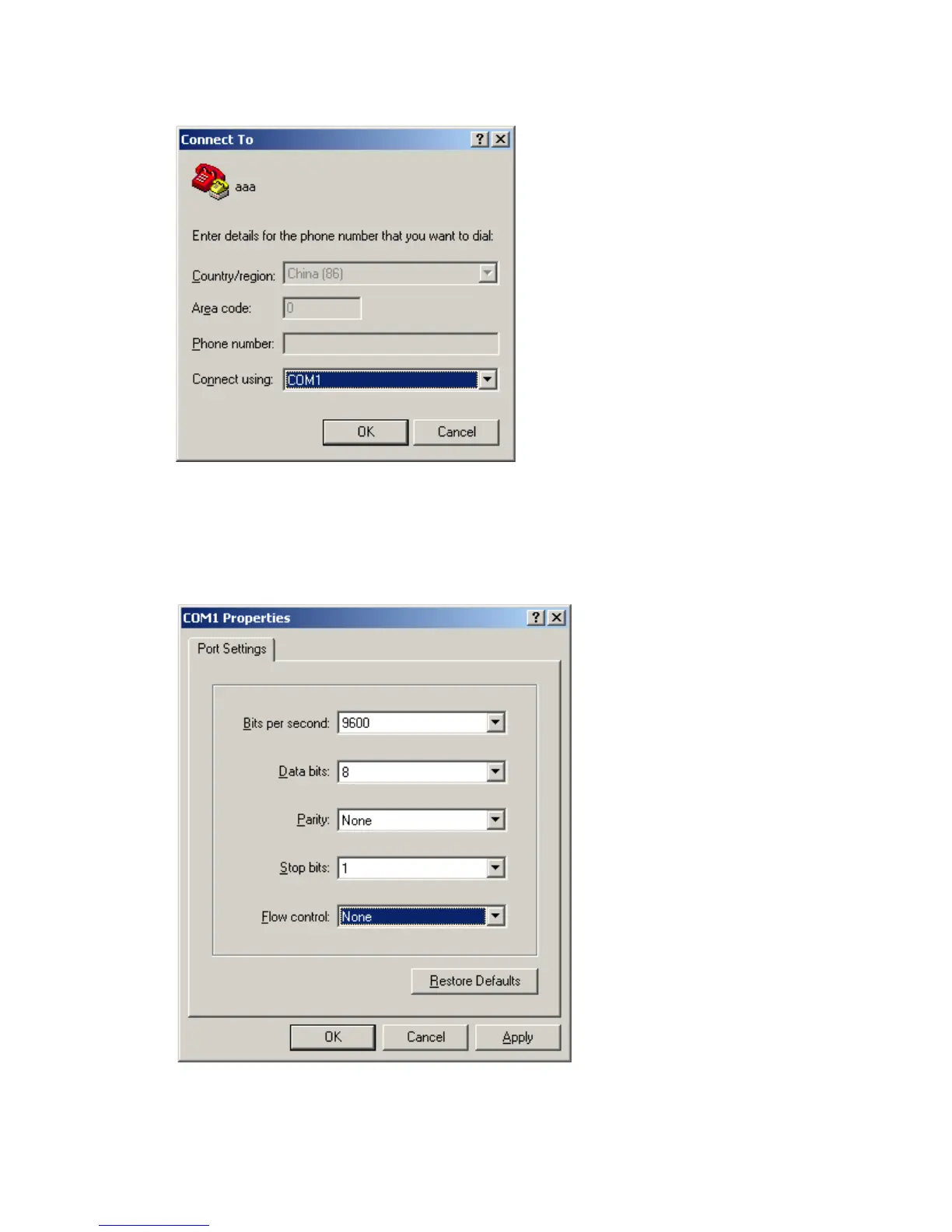

Figure 43 Select a serial port for the new HyperTerminal connection
• After selecting a serial port, click OK. Then, the COM1 Properties window as shown in Figure 44
appears. On the window, set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to
1, and Flow control to None. After setting the parameters, click OK. Then, the page as shown in
Figure 45 ap
pe
ars.
Figure 44 Set the serial port parameters for the new HyperTerminal connection
