Hasselblad X1D II 50C User Manual

X1D II 50C USER GUIDE www.hasselblad.com
123
SETTINGS
Contents
FIRMWARE UPDATE
MAIN MENU > GENERAL SETTINGS >
SERVICE > CHECK FOR UPDATE
1 Press the Settings icon on the Touch
Display.
2 The General Settings Menu appears.
3 Press the Service Menu.
4 Press the Check for Update button.
5 The camera will now check the
inserted card/cards for update les.
Swipe right or press the Menu / EXIT
button to get back to the Main Menu.
Update X1D II Firmware Procedure
1 Download the latest X1D II Firmware
from www.hasselblad.com.
2 Save the Firmware le to an SD Card.
3 Insert the SD Card in the Camera.
4 Select Settings from the Main Menu.
5 Select Service / Firmware Update /
Check for Update.
6 Make sure the Firmware File Name
and Number corresponds to the latest
Firmware File you have downloaded.
7 Select Update.
8 Select Update in the Update Dialogue
to start the Firmware Update.
9 During the update the text "Update in
progress" is displayed on the Camera
Display.
10 Do not turn off the Camera during the
Update Progress.
11 The Update will take several minutes.
12 When the Update is nished this text
will be displayed: "Update Finished.
Please remove and reinsert battery!".
13 Remove and reinsert the battery.
14 Start the Camera.
15 The new Firmware is now installed!
Note!
A USB cable cannot be inserted when per-
forming the update. A warning message
will be shown if a cable is inserted.

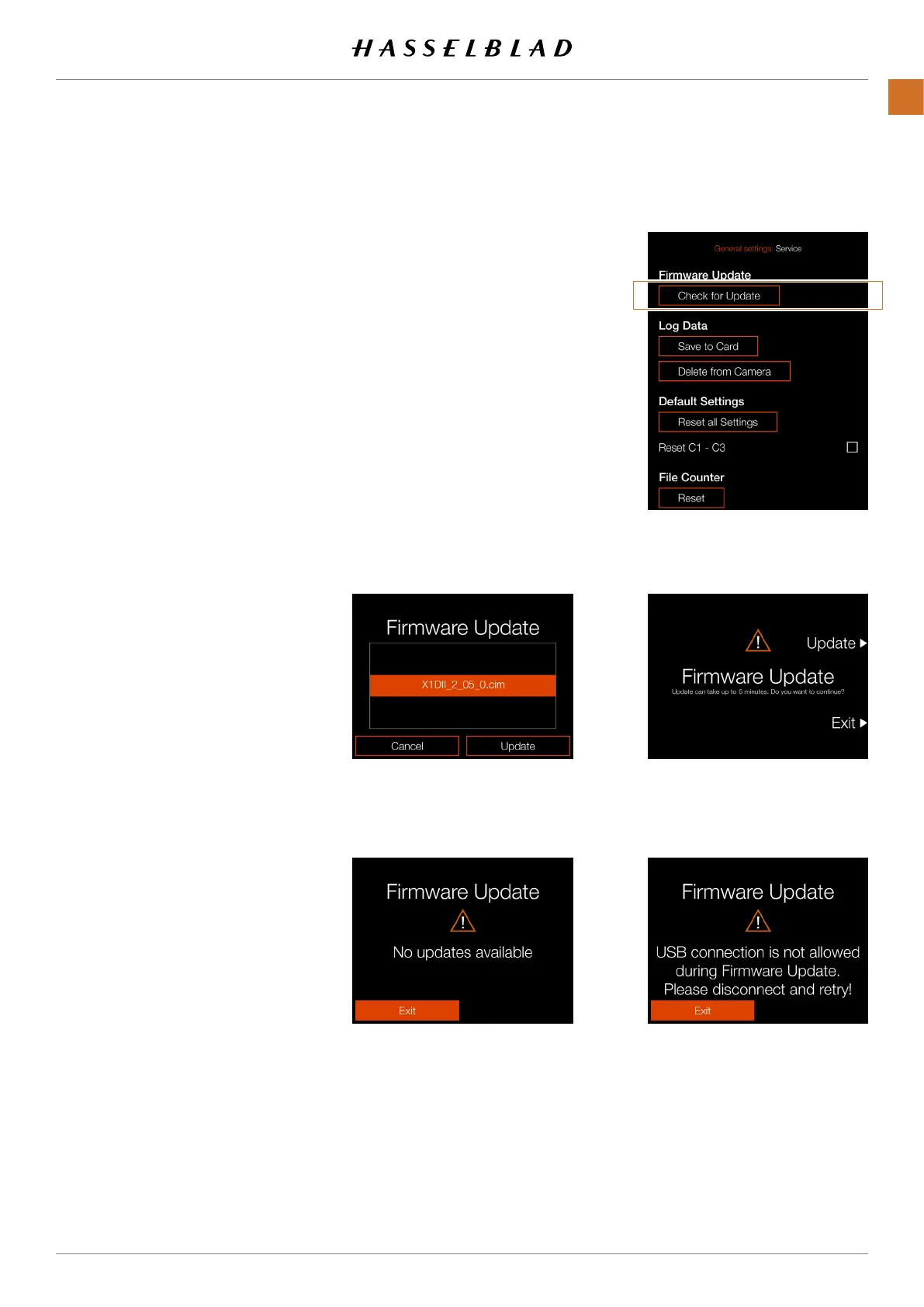

Check for Update dialogue
No Firmware Update les are
available on the SD Card
Update Conrm dialogue
USB Warning dialogue
Service Menu

Hasselblad X1D II 50C Specifications

General

Megapixel	50 MP
Camera type	MILC Body
Sensor type	CMOS
Image sensor size	- \
Image formats supported	JPEG, RAW
Maximum image resolution	8272 x 6200 pixels
Image sensor size (W x H)	43.8 x 32.9 mm
Still image resolution(s)	-
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
USB version	3.2 Gen 1 (3.1 Gen 1)
USB connector	USB Type-C
Headphone outputs	1
Optical zoom	- x
Shooting modes	Auto, Manual
Self-timer delay	- s
Product color	Black
Battery voltage	7.27 V
Battery capacity	3400 mAh
Battery recharge time	2 h
Magnification	0.87 x
Viewfinder type	Electronic
Viewfinder resolution	3690000 pixels
Display diagonal	3.6 \
Display resolution (numeric)	2360000 pixels
Memory slots	2
Compatible memory cards	SD
Operating temperature (T-T)	-10 - 45 °C
Maximum video resolution	- pixels
Flash range (wide)	- m
Fastest camera shutter speed	1/10000 s
Slowest camera shutter speed	4080 s
Light metering	Centre-weighted, Evaluative (Multi-pattern), Spot
ISO sensitivity	100, 200, 400, 800, 1600, 3200, 6400, 12800, 25600
Light exposure modes	Auto
ISO sensitivity (max)	25600
ISO sensitivity (min)	100
Focus adjustment	Auto/Manual

Weight and Dimensions

Depth	70 mm
Width	148 mm
Height	97 mm
Weight	650 g
Weight (including battery)	766 g
