X1D II 50C USER GUIDE www.hasselblad.com
76
FUNCTIONS
Contents

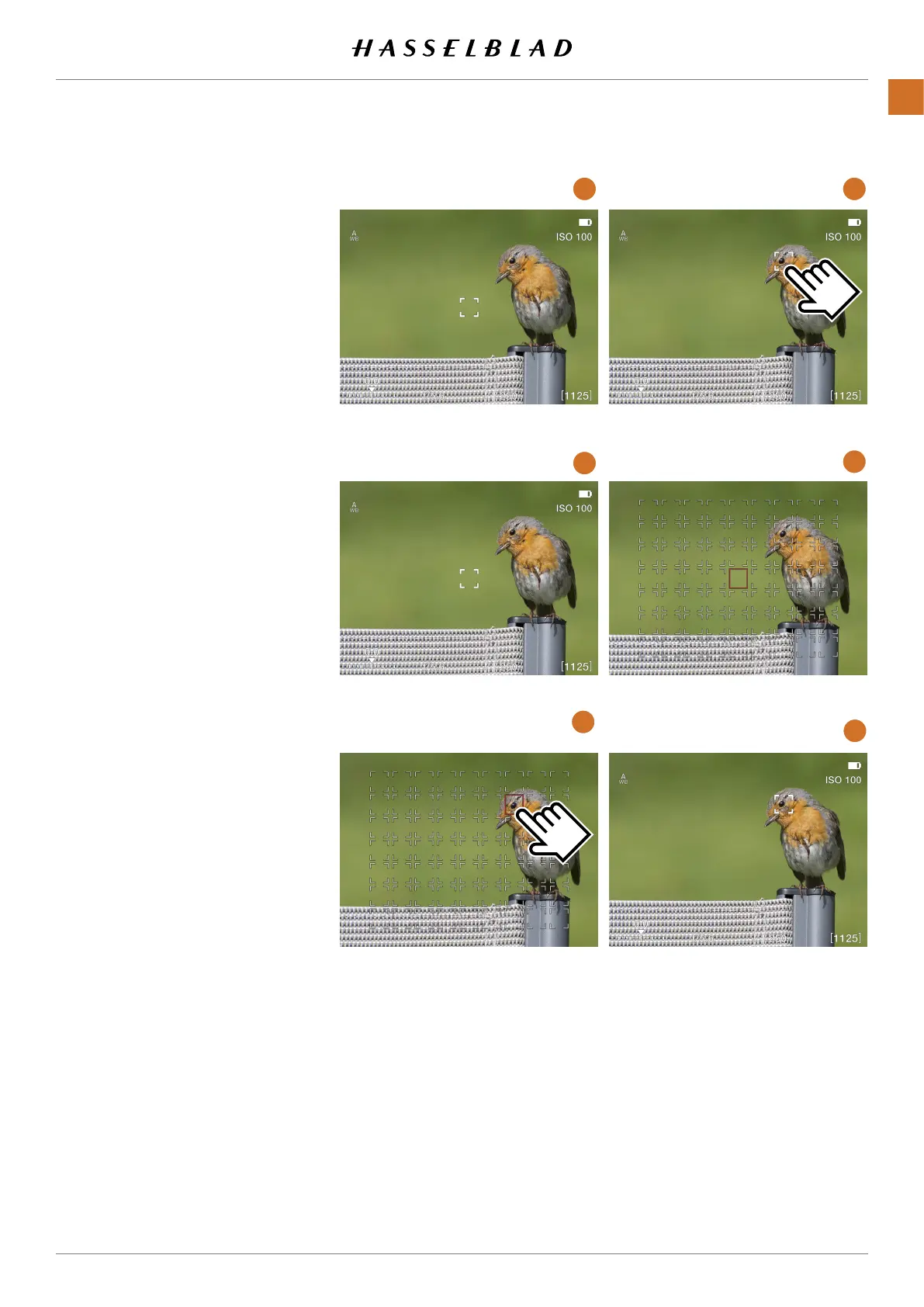

4.16 MOVE AUTOFOCUS POINT
The Autofocus point (A) can be moved,
and selected manually, to any one of the
available points (B). The size of the AF
point can be set to 4 mm, 2.8 mm or 2
mm. See page 77 for details on how
to resize. Also see page 78 on how to
move point while looking through the
EVF.
Move by Touch
If
Move AF Point
in
Main Menu > Gener-
al Settings > Touch
is checked, you can
tap the new location
(B)
where you want
to focus when Live View is active.
Move the Autofocus point on the Touch
Display in Live View Mode or in the
Electronic Viewnder EVF
1 Start Live View Mode or use the EVF.
2 Press and hold the AF/MF button for
1 second.
3 All focus points are now displayed as
an overlay
(D)
.
4 Select one of the AF points by tapping
on the Touch Display or Rotate the
Rear Scroll Wheel to move the AF
point up/down and the Front Scroll
Wheel to move left/right
(E)
.
5 Save and exit by a half-press on the
Shutter Release button. The AF point
is now in the new selected location
(F)
.
How to use the Scroll Wheels to move
the AF point
AF point Rear Scroll Wheel
Move up Rotate left
Move down Rotate right
AF point Front Scroll Wheel
Move left Rotate left
Move right Rotate right
Save the new point with a Half-press on
the Shutter Release button.
Note!
If Spot Metering is selected and the AF point is moved, the
sensitive light metering area will follow the AF Point.
Note!
To reset the AF point back to the centre position, press the
Cross Button. The Focus Point can also be reset to centre in
Live View by pressing the Cross Button.
Note!
You can set the camera to automatically reset the Focus point
to the centre position after a capture, or maintain the selected
position, in
Main Menu > Camera Settings > Focus > Reset
Focus Point
.
