Modules and transducers
104 A03031_24_E00_01 HBM: public QuantumX
Notice
To ensure trouble-free operation, the CANbus must be terminated at both
ends, and only there, with an appropriate terminating resistor.
In Logging or Sniffing mode in the vehicle, the port must not be terminated
under any circumstances. Short stub lines and "Listen-Only" mode are
recommended.
A 120 Ohm terminating resistor can be connected individually in the module via
software. Termination is necessary even for a point-to-point connection with
short lines.
Please refer to the data sheet for the relation between bit rate and maximum
bus line length.
The configuration of a node is retained after switching the modules off and on.
8.9.2 MX471C pin assignment
1
5
6
9

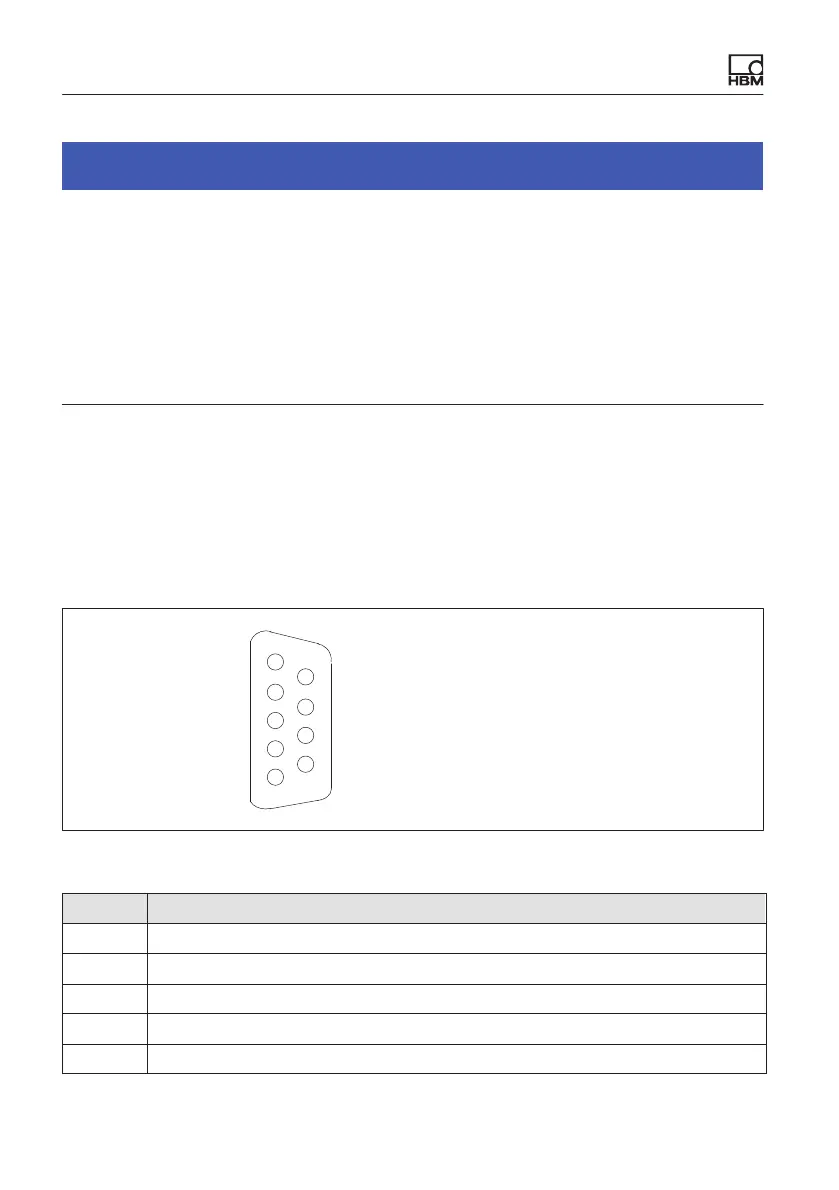

Fig. 8.14 Pin arrangement of connector plug, view from the solder side
Pin Connector SubD 9 to CiA
1 No function
2 CAN Low
3 GND
4 No function
5 CAN Shield
