HBM QuantumX - Multiple Ethernet Connection with PTP Synchronization

Connecting individual QuantumX modules
58 A03031_24_E00_01 HBM: public QuantumX
7.2.2 Multiple Ethernet connection with PTP synchronization
Patch cable
Patch cable
10 V ...
30 V DC
10 V ...
30 V DC
10 V ...
30 V DC
PTPv2‐Switch
Ethernet

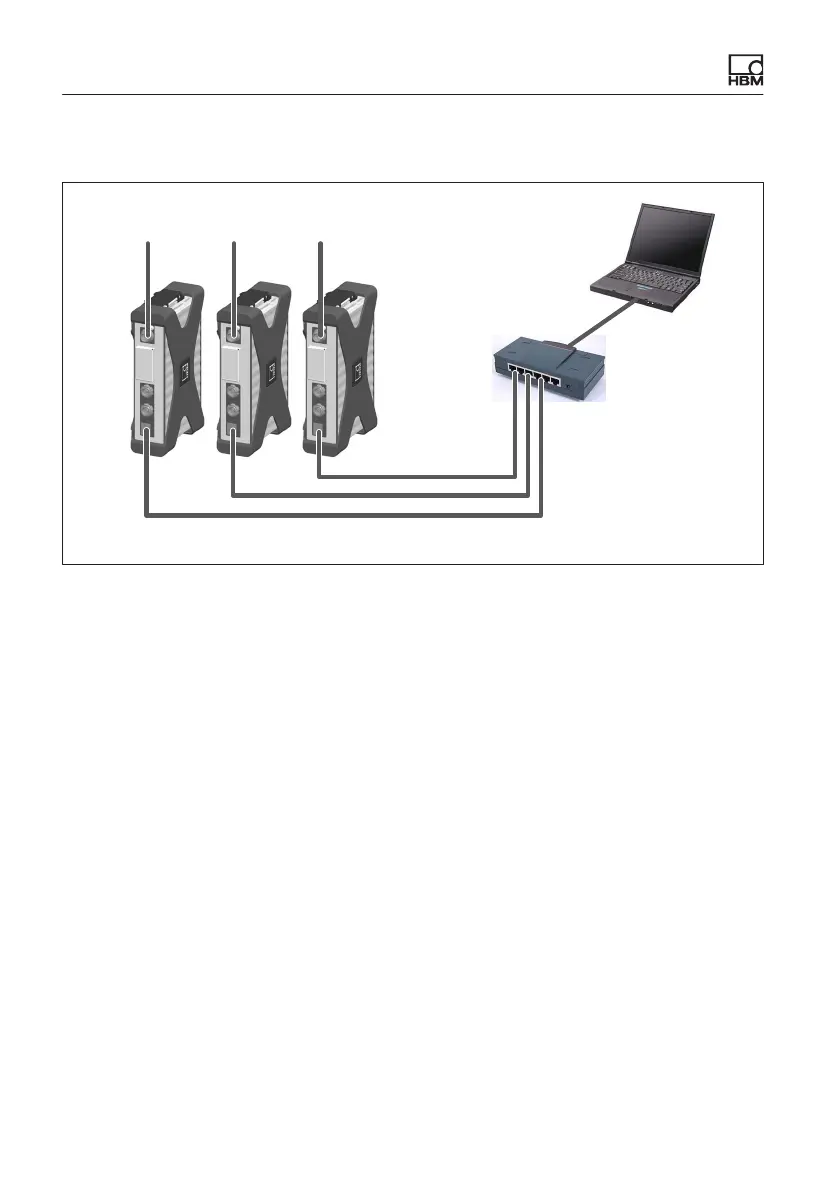

Fig. 7.3 Multiple connection via Ethernet and synchronization via PTPv2
The modules can be connected to the PC and synchronized via Ethernet
PTPv2-compliant switches.
Here are some examples:
S EX23-R from HBM
S Scalance XR324-12M from Siemens
S RSP20 or MACH1000 from Hirschmann
S Stratix 5400 from Rockwell
PTP Grandmaster Clock examples:
S LANTIME M600 from Meinberg
S OTMC 100 from Omicron
