HBM QuantumX - Teds

Modules and transducers
QuantumX A03031_24_E00_01 HBM: public 75

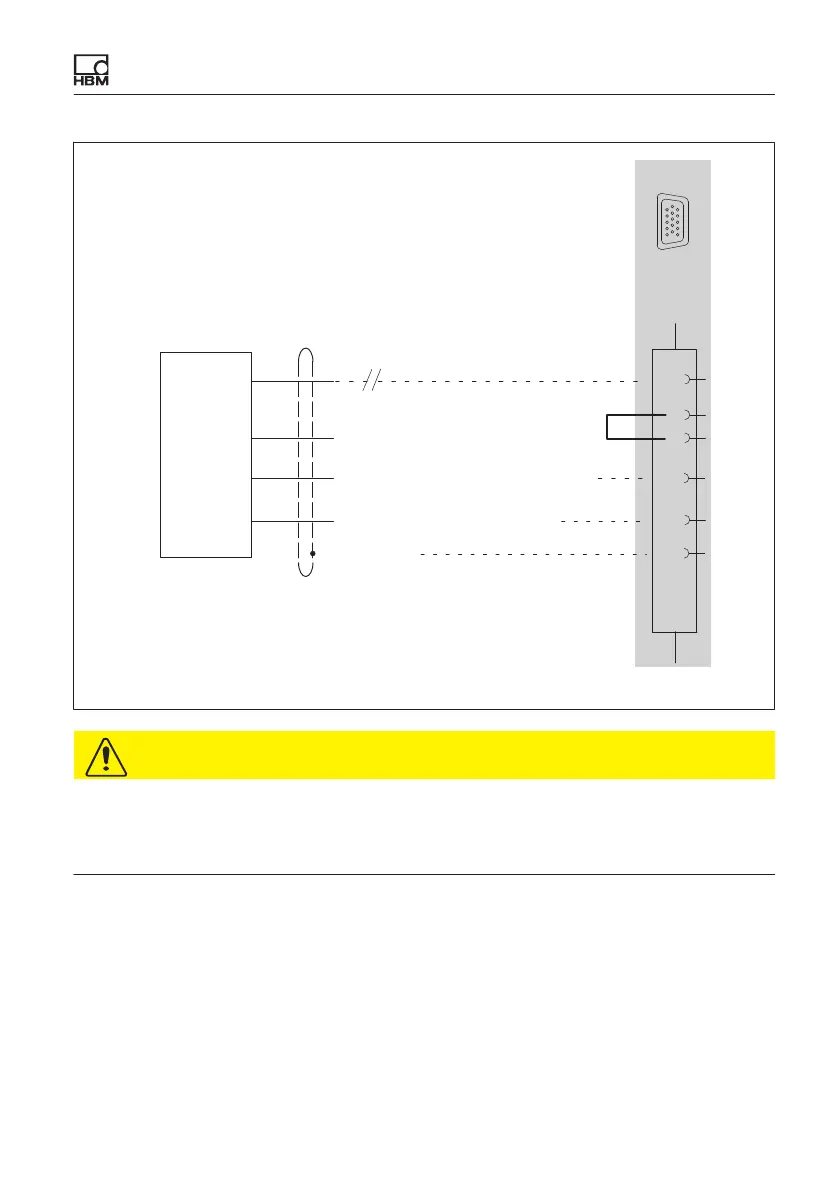

11
12
Hsg.
9
Supply voltage 5V … 24V
1)
Power supply 0V
4
1)
Adjustable via software
Cable shield
Sensor
Connection as per measurement
principle
Hsg. = Housing
CAUTION
Check the correct voltage setting when connecting a sensor. Too high a
voltage can destroy the sensor. The sensor supply is switched off in condition
at the time of delivery.
8.1.3 TEDS
TEDS stands for "Transducer Electronic Data Sheet" and refers to the elec
tronic data sheet of a transducer or sensor that is stored in a small electronic
chip or appropriate module which is permanently connected to the device.
