QuantumX A03031_24_E00_01 HBM: public 45
6.3 Mounting the housing with CASEFIT
A CASEFIT fitting panel can be used for flexible mounting of QuantumX series
modules. The modules can be fastened in place with belt tensioners or case
clips (CASECLIP).
Lugs for additional
fastening with
tension belts
132
169.5
Ø 5.6
22
11.4
approx. 30
Dimensions in mm (1 mm = 0.03937 inches)

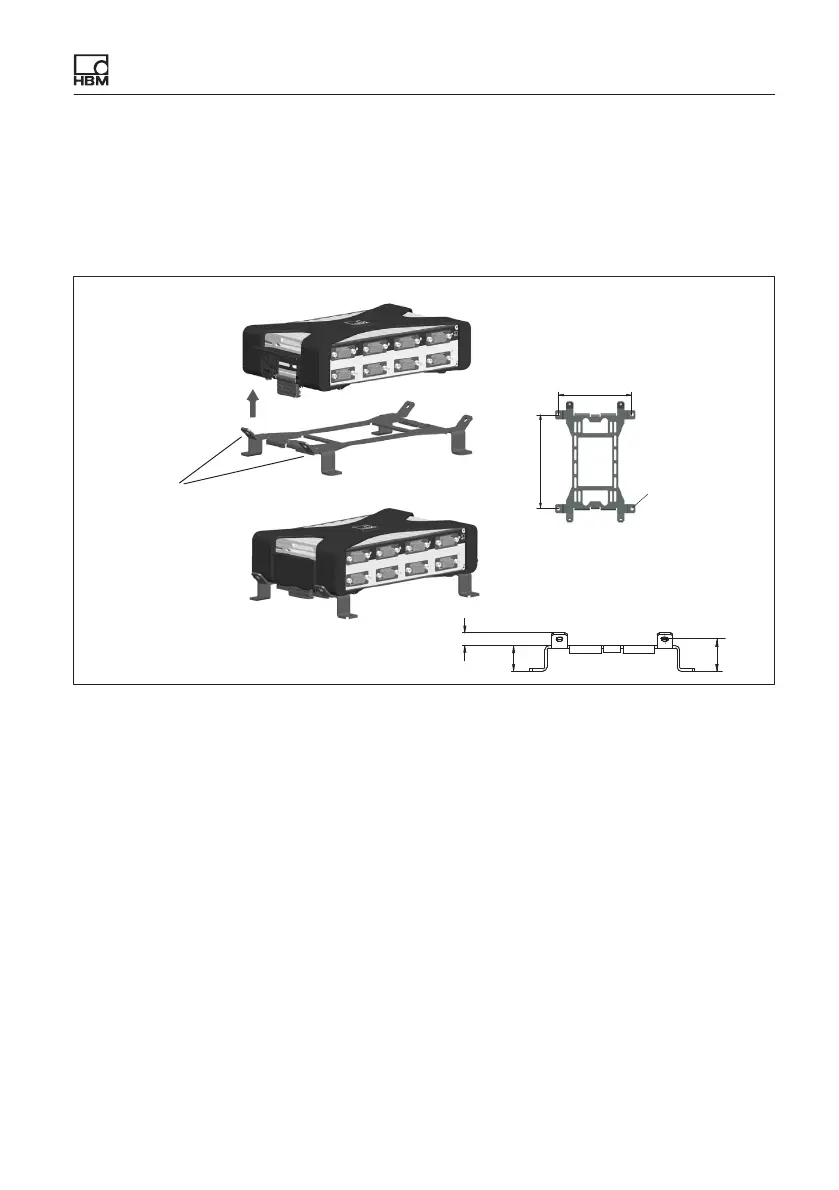

Fig. 6.10 Mounting with CASEFIT and CASECLIP
6.4 BPX001/BPX002/BPX003 backplane
The use of a backplane such as BPX001 or BPX002 (RACK) allows up to
9 modules to be connected with hardly any wiring. When using BPX003,
5 modules can be connected.
The backplane also has two additional FireWire interfaces for integrating dis
tributed modules or for direct connection to a PC or data recorder. The
IEEE1394b FireWire interfaces are actively interconnected.
The individual modules can also be connected via Ethernet (RJ45) through the
openings on the back of the backplane. FireWire interfaces of the individual
modules are actively connected to each other.
