Modules and transducers
QuantumX A03031_24_E00_01 HBM: public 107
8.10 MX1601B amplifier
You connect up to 16 freely configurable inputs for voltage (10 V, 100mV) or
current (20mA) or current-fed piezoelectric sensors (IEPE) to the MX1601B.
The transducers are connected via 8-pin plug terminal connectors (Phoenix
Contact FMC 1.5/8-ST-3.5-RF (order no. 1952089)).
All measuring channels are electrically isolated from one another and from the
power supply. When using the adjustable transducer excitation, electrical isola
tion from the supply voltage of the amplifier is not required.

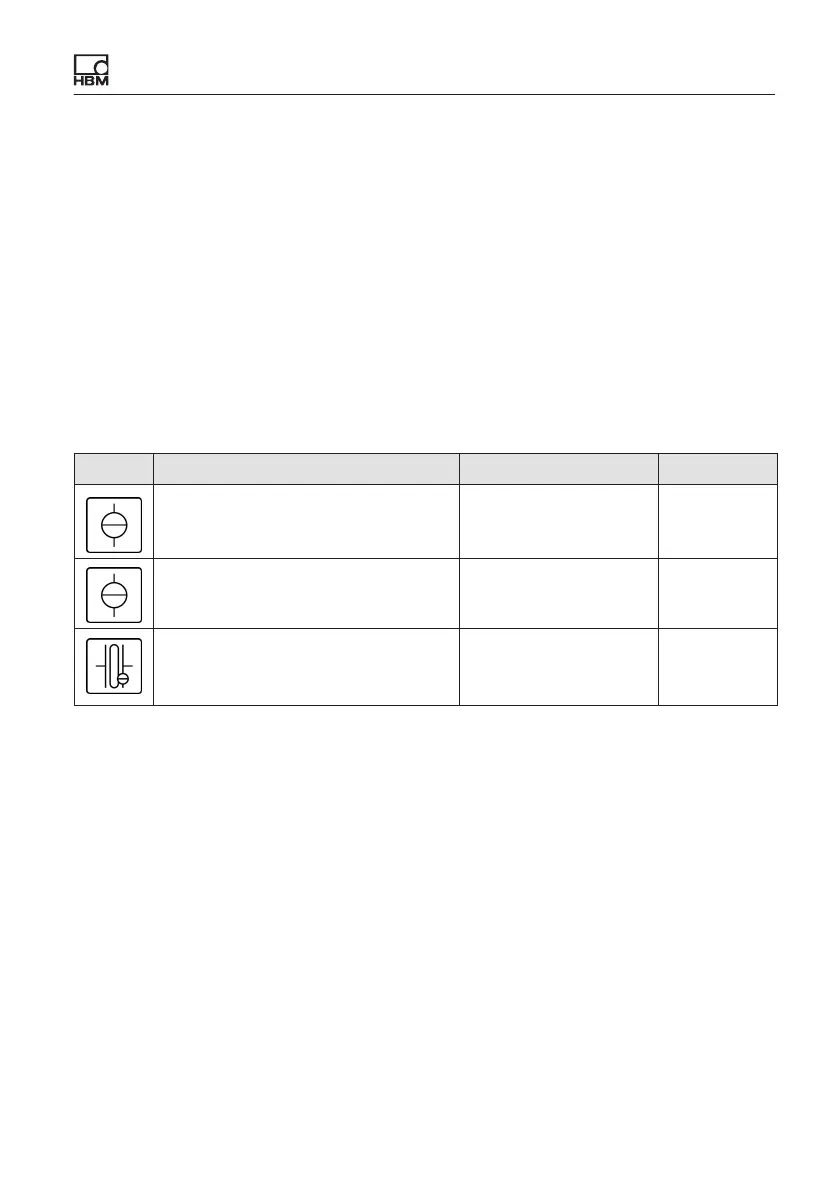

MX1601B connectable transducers
Transducer type Connection sockets See page
Electrical voltage 1 ... 16 130, 131
Electrical current 1 ... 16 134
Current-fed piezoelectric transducer
(IEPE, ICP®) via an external ad
apter
1 ... 16 128
