Transducer connection
124 A03031_24_E00_01 HBM: public QuantumX

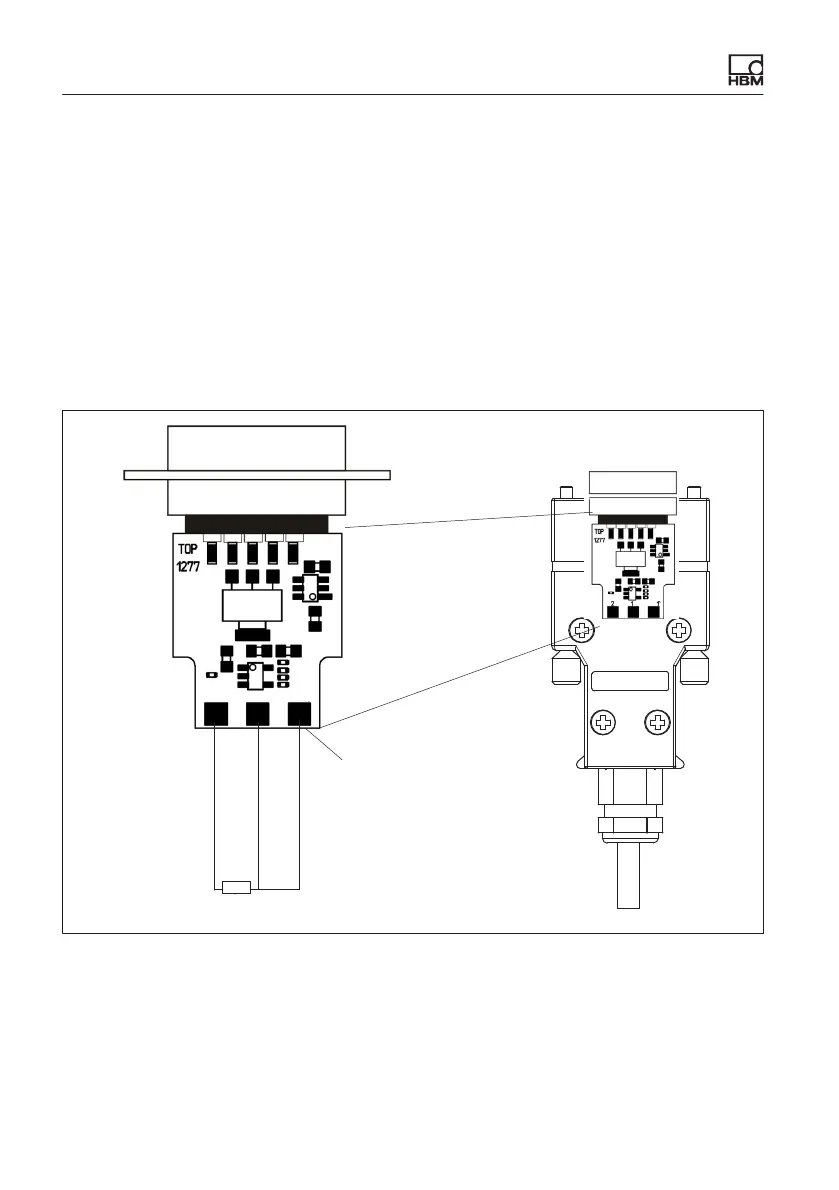

9.7 Quarter bridge adapter, resistive
For connecting single quarter-bridge strain gauges in three-wire configuration,
an adapter can be plugged onto the following modules:
MX840B, MX440B, MX430B, MX238B, MX410B
Available adapters
SG with 120 ohms: order number: SCM-SG120
Variations:SCM-SG350, SG1000
21
1’
SG 120 / 350
2
1'1
Solder pads
For technical details see the leaflet entitled QuantumX/SCM-SG120/350/1000.
