7.2.6 Distributed setup

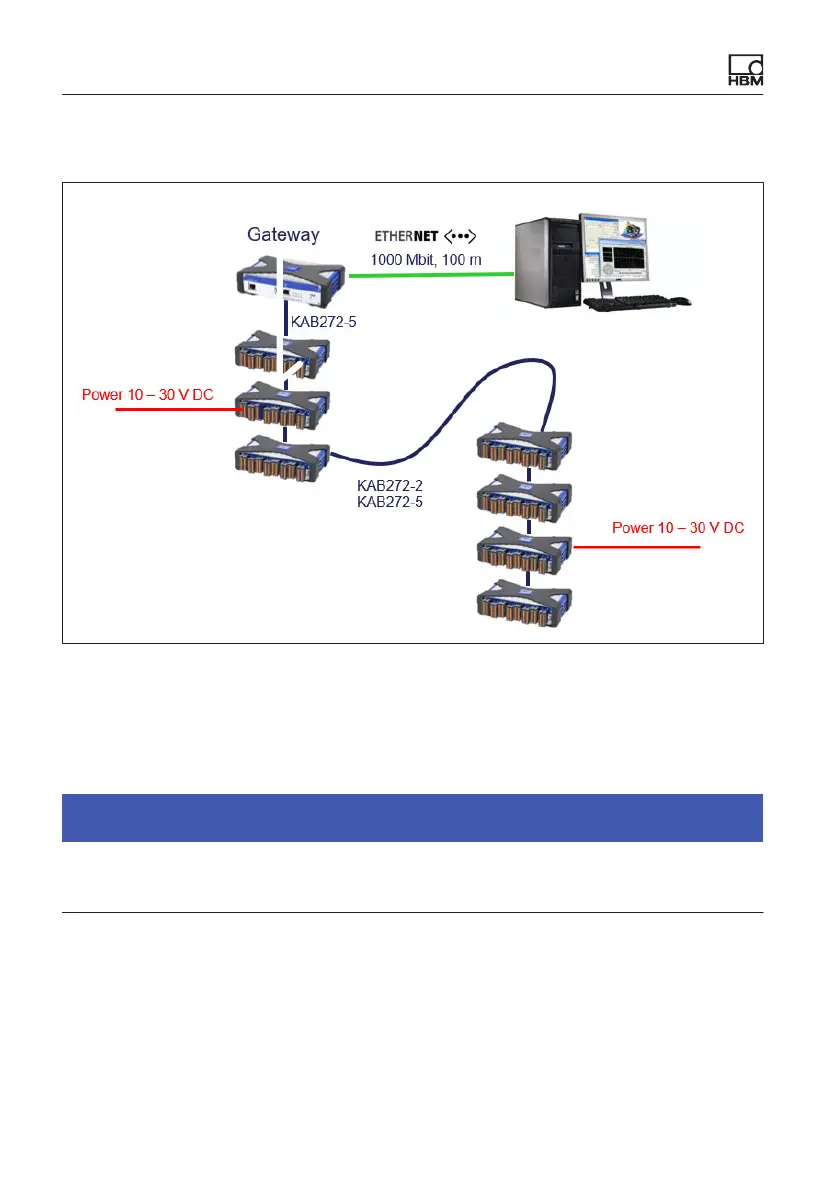

Fig. 7.6 Example of distributed setup
Data is transferred, modules are synchronized in timing and voltage is supplied
via the FireWire connections. You can connect a maximum of 12 modules in
series with each other.
Notice
Different sources of supply voltage must provide the same voltage value, e.g.
24 V.
