HBM QuantumX - Backplane BPX001

Mechanical
48 A03031_24_E00_01 HBM: public QuantumX
ProtectsFuse
3 Slots 1 to 4
4 Slots 5 to 9
6.4.2 Backplane BPX001
A total of 10 drill holes are provided in the backplane for wall mounting (∅ 6.5
mm). We recommend using the outer 4 drill holes for wall mounting.
Notice
Only use countersunk screws for fastening. Otherwise the modules cannot be
mounted correctly.
449
407.75
318.75
229.75
140.75
56.75
85
36.25
147.5
220
6.5

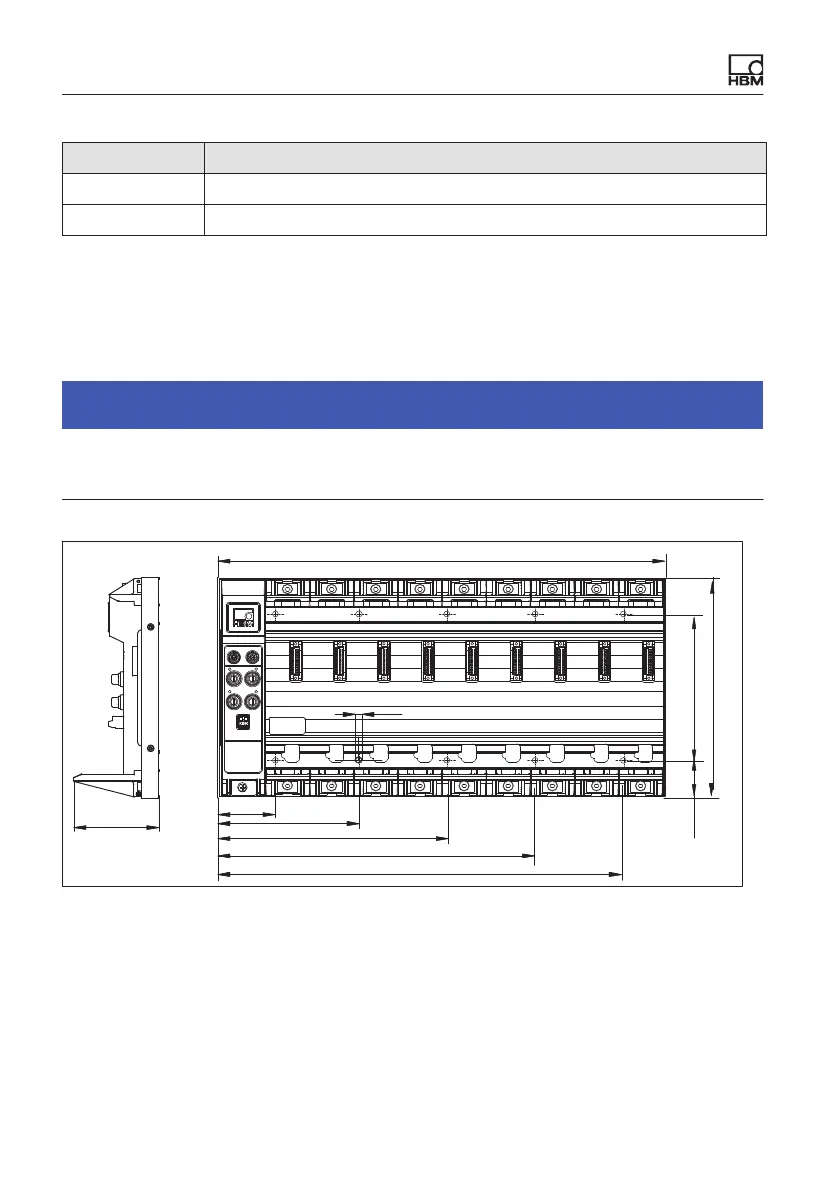

Fig. 6.13 BPX001 drilling pattern and dimensions
Note the following information when installing one or more backplanes in a con
trol cabinet:
S When installing in a control cabinet, the temperature limits given in the tech
nical data of the backplanes must be complied with
