7.2.11 Output signals in real time via EtherCAT
®
or PROFINET IRT and
in parallel via Ethernet
Each source in a QuantumX system is distributed into two signals, to which
different data rate and filtering parameters can be assigned.
For example, the first signal of an input channel with a high data rate, e.g.
acceleration sensor with 100 kS/sec measured values and deactivated filter for
analysis while the second signal with 5 kS/sec can be output via EtherCAT®.
CX27C
Controller / Master
KAB272
KAB272

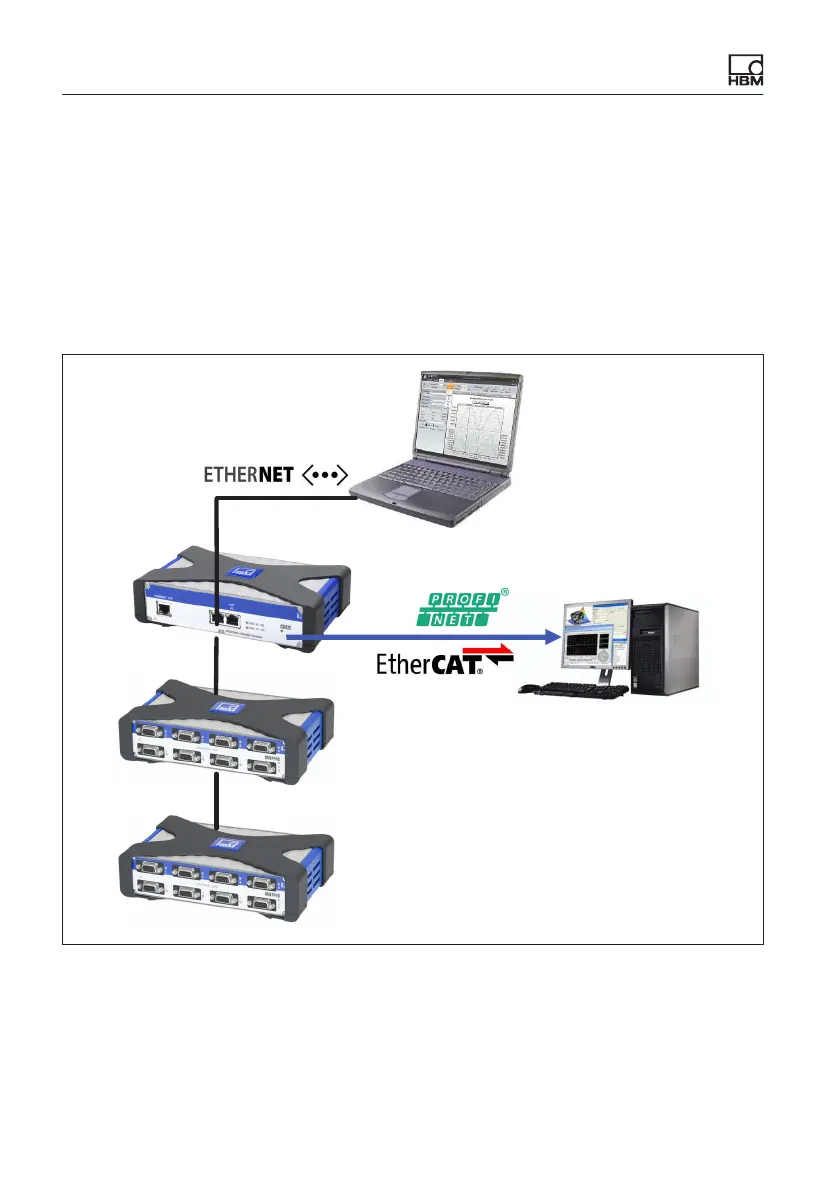

Fig. 7.11 Output in real time via the fieldbus and in parallel via Ethernet
