HBM QuantumX - MX840 B Pin Assignment

Modules and transducers
82 A03031_24_E00_01 HBM: public QuantumX
See pageConnection socketsTransducer type
Incremental encoder 5 ... 8 from 141
SSI protocol 5 ... 8 148
Torque/speed (HBM torque trans
ducer)
5 ... 8 142, 151
Frequency measurement, pulse
counting
5 ... 8 from 141
CAN bus 1 154

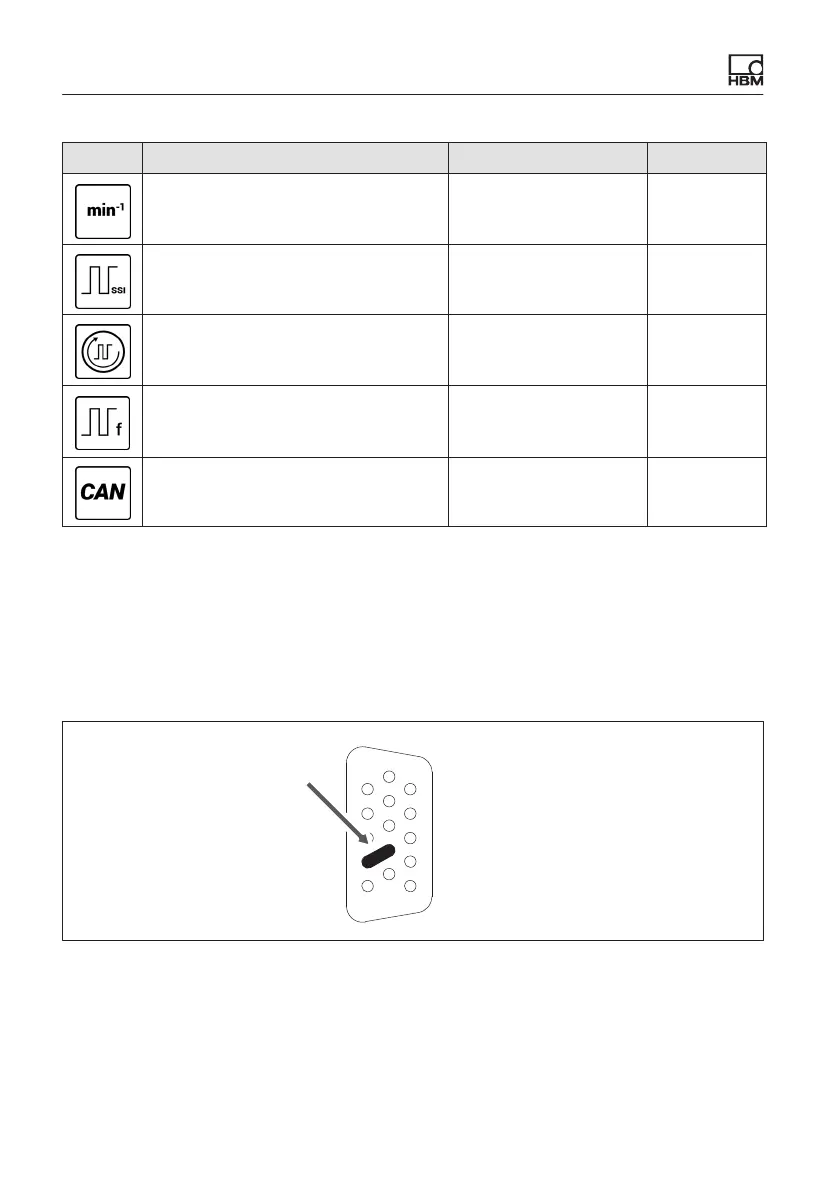

8.2.1 MX840B pin assignment
So that insertion or removal of a transducer connection can be unmistakably
identified and, with TEDS, the channel is automatically parameterized, Pin 4
and Pin 9 in the connector plug must be bridged! If this bridge is missing, no
measurement values will be recorded at the connection!
1
4
5
11
15
Bridge
Fig. 8.2 Pin arrangement of connector plug, view from the solder side
