HBM QuantumX - Background Calibration; Autoadjustment

Modules and transducers
78 A03031_24_E00_01 HBM: public QuantumX

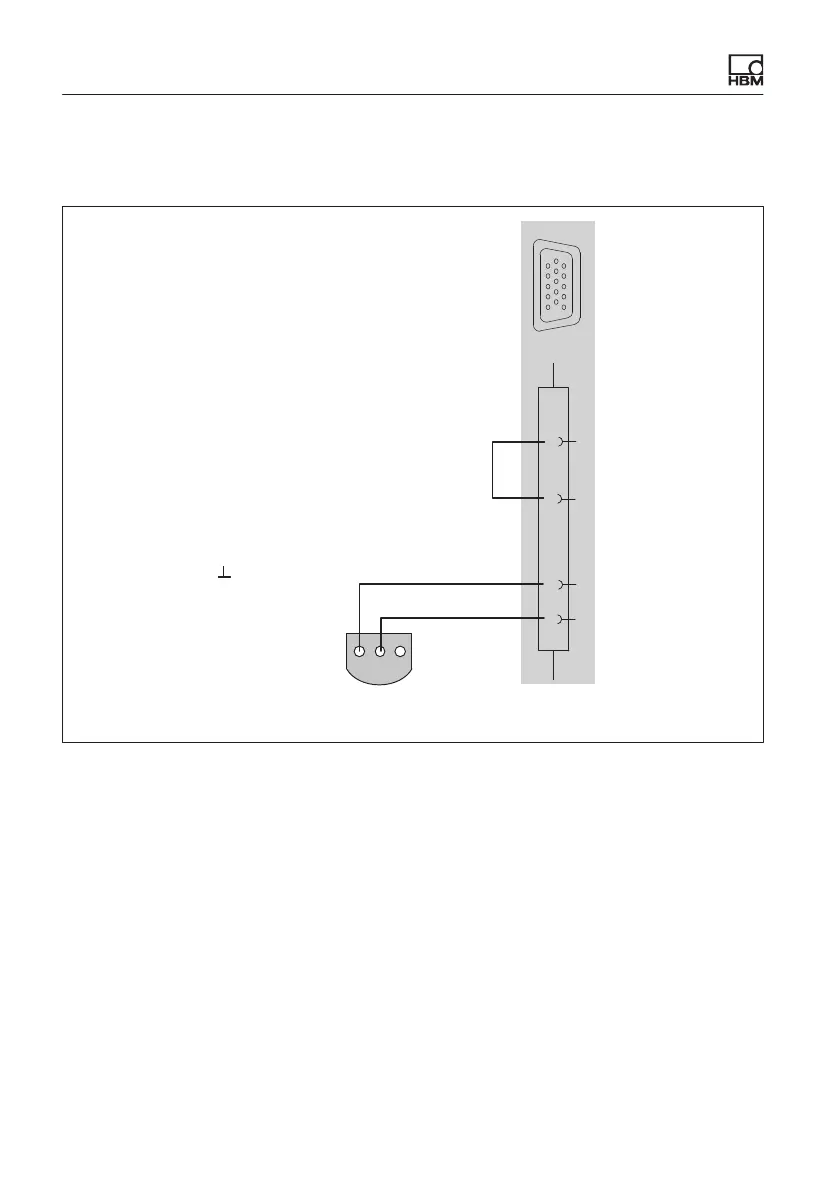

HBM recommends the TEDSmodule (1Wire
®
EEPROM) DS24B33 from Dal
las Maxim. HBM offers a package with 10 TEDS: order no. :1-TEDS-PAK
2 Data
3 No function
1
6
1
4
9
Bridge
123
1-wire EEPROM
(DS24B33)
1
5
6
10
11
15
View from below
8.1.4 Background calibration / autoadjustment
Measurement channels with full/half bridge mode are cyclically calibrated dur
ing the runtime following the start of the module. This mechanism improves
long-term stability (aging) and also the short-term stability of an amplifier if
there are temperature fluctuations at the site of the measuring device.
Background calibration briefly interrupts measurement and - in place of the
measured values from the transducer - sends signals from an internal calibra
tion source to the AD converter (zero and reference signal).
Background calibration is available for the following amplifiers: MX840B,
MX440B, MX430B and MX238B.
