8.8.2 MX1609 status display
Connection LED
System
LED

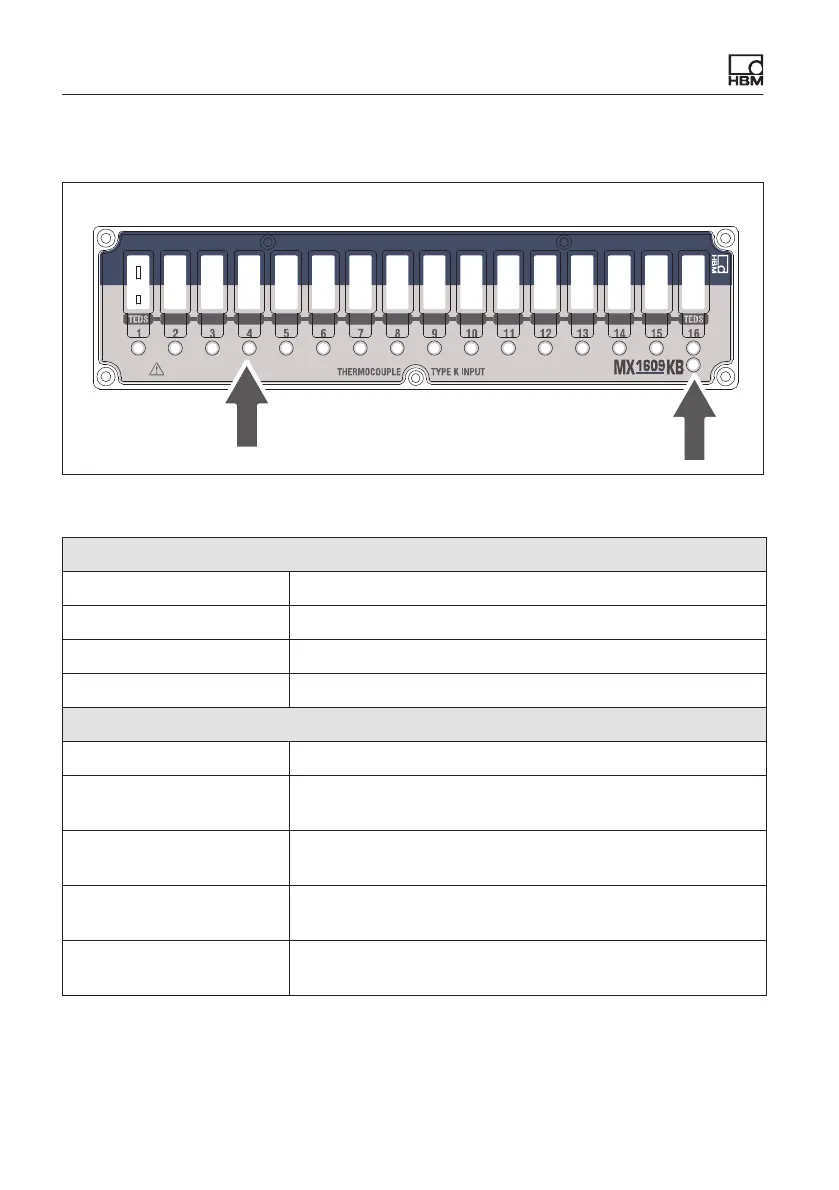

Fig. 8.13 MX1609KB front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing or
ange
Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification run
ning (calibration)
Green Error-free operation ("Ignore TEDS" or "if available" set,
channel is manually configured)
Flashing green (5s), then
green
Error-free operation ("Use TEDS" or "if available" set
and TEDS data valid)
