6.4.7 System layout with several backplanes
Multiple BPX backplanes can be set up and interconnected to form a complete
system. For this, the backplanes must be individually supplied by the same
voltage source and connected by the connecting cable KAB272-2 or -5. A
gateway module to the PC or test bench is required in order to connect up to
24 modules. Larger setups must be synchronized via Ethernet PTPv2.
QuantumX
Gateway: CX27C, MX471C
8 x MX
QuantumX
9 x MX…
Max: 24 modules
KAB272-2 or -5

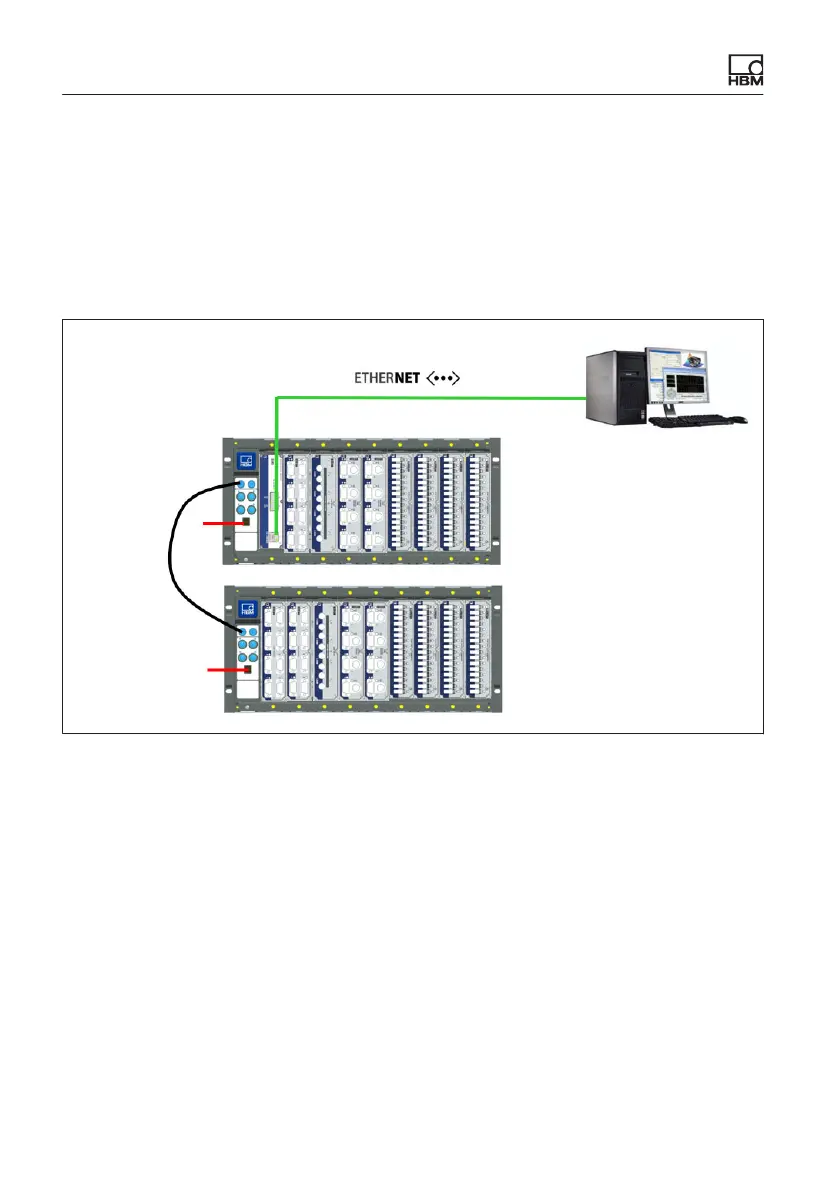

Fig. 6.21 Synchronizing multiple backplanes
