HBM QuantumX - Output Measurement Signals to CAN Bus (MX471 C)

Connecting individual QuantumX modules
70 A03031_24_E00_01 HBM: public QuantumX
7.2.9 Output measurement signals to CAN bus (MX471C)
The MX471C module allows measurement signals, or the signals calculated in
real time, to be output to the CAN Bus. This gateway mode is typically used in
test benches or in mobile measuring mode, for connection to a central
CANbased data logger.
This mode is configured entirely in the MX Assistant software. The signals to
be transmitted must be parameterized isochronously (in real time), and then
assigned to the relevant CAN port. The parameterization is permanently stored
in the modules. To simplify integration at the opposite end (e.g. logger/test
bench), the MX Assistant can generate a CAN database of signals (*.dbc).

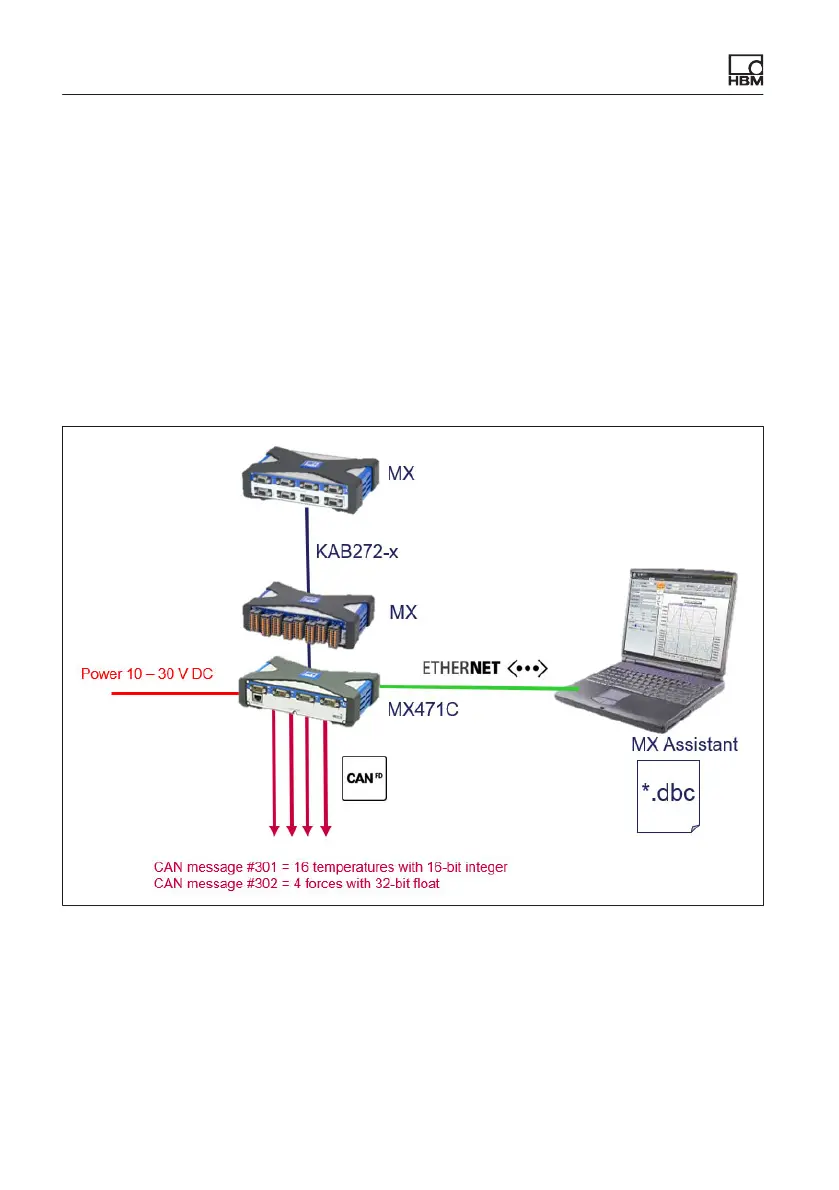

Fig. 7.9 Output to CAN bus (MX471C, every connection)
