8.7.2 MX460B status display
Connection LED
System LED

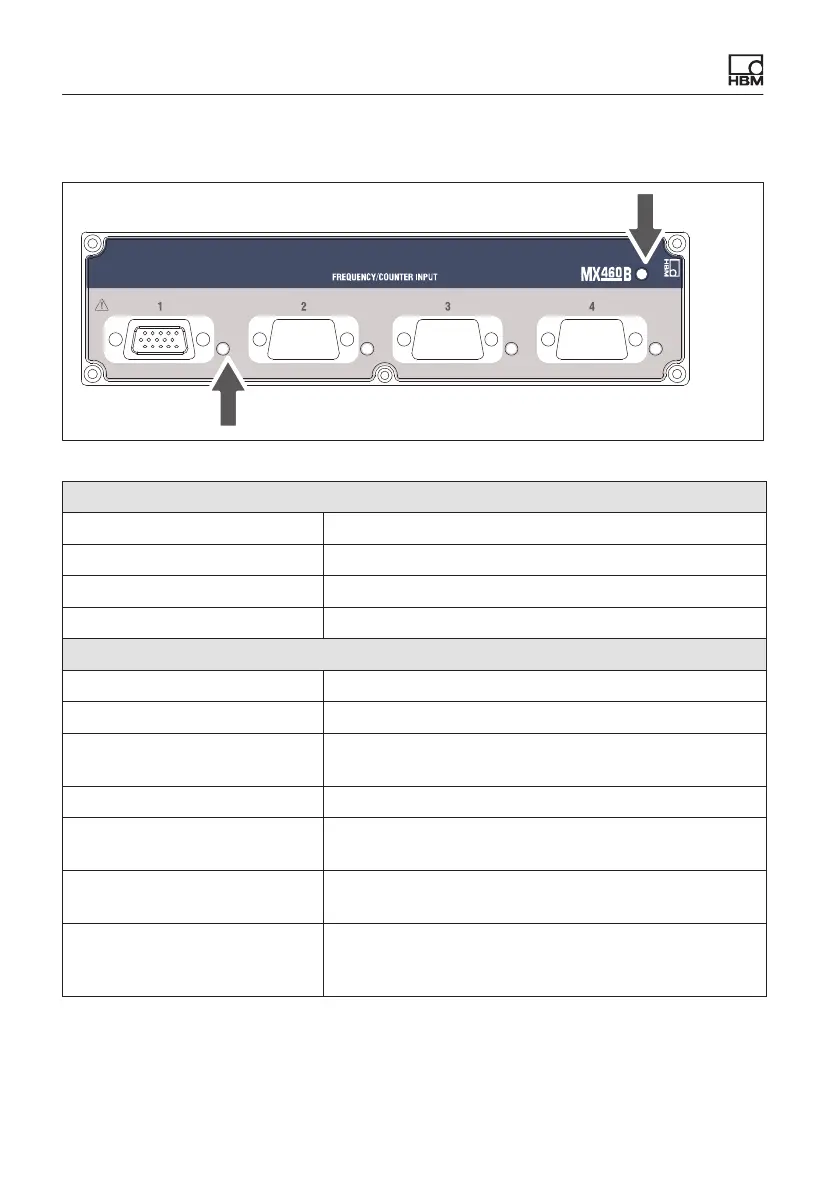

Fig. 8.12 MX460B front view
System LED
Green Error-free operation
Orange System is not ready, boot procedure running
Flashing orange Download active, system is not ready
Red Error
Connection LEDs
All LEDs are orange Boot procedure running (system is not ready)
All LEDs are flashing orange Firmware download active (system is not ready)
Orange Connection newly assigned, transducer identification
running (calibration)
Green Error-free operation
Flashing green (5s), then
green
TEDS data being read in
Flashing orange (5 s), then
green
Manual configuration ongoing (ignore TEDS)
Red No sensor connected
Channel error (incorrectly parameterized, connection
error, invalid TEDS data)
General rule: Brief flashing → TEDS identified (green: is used, orange: is not used).
