8.8 MX1609KB and MX1609TB thermocouple amplifier
Up to 16 type K thermocouples (NiCr-NiAl) can be connected to the module
MX1609/KB for measuring temperatures.
Up to 16 type T thermocouples (Cu-CuNi) can be connected to the module
MX1609T/TB for measuring temperatures.
Connectable to MX1609 transducers
Transducer type Connection sockets See page
Thermocouple type K, type T 1 ... 16 138
MX1609
+
-
Thermocouple
-
+
-
+
Type Thermocouple material 1 (+) Thermocouple material 2 (-)
K Nickel-chrome (color code green) Nickel (color code white)
T Copper (color code brown) Copper-nickel (color code white)

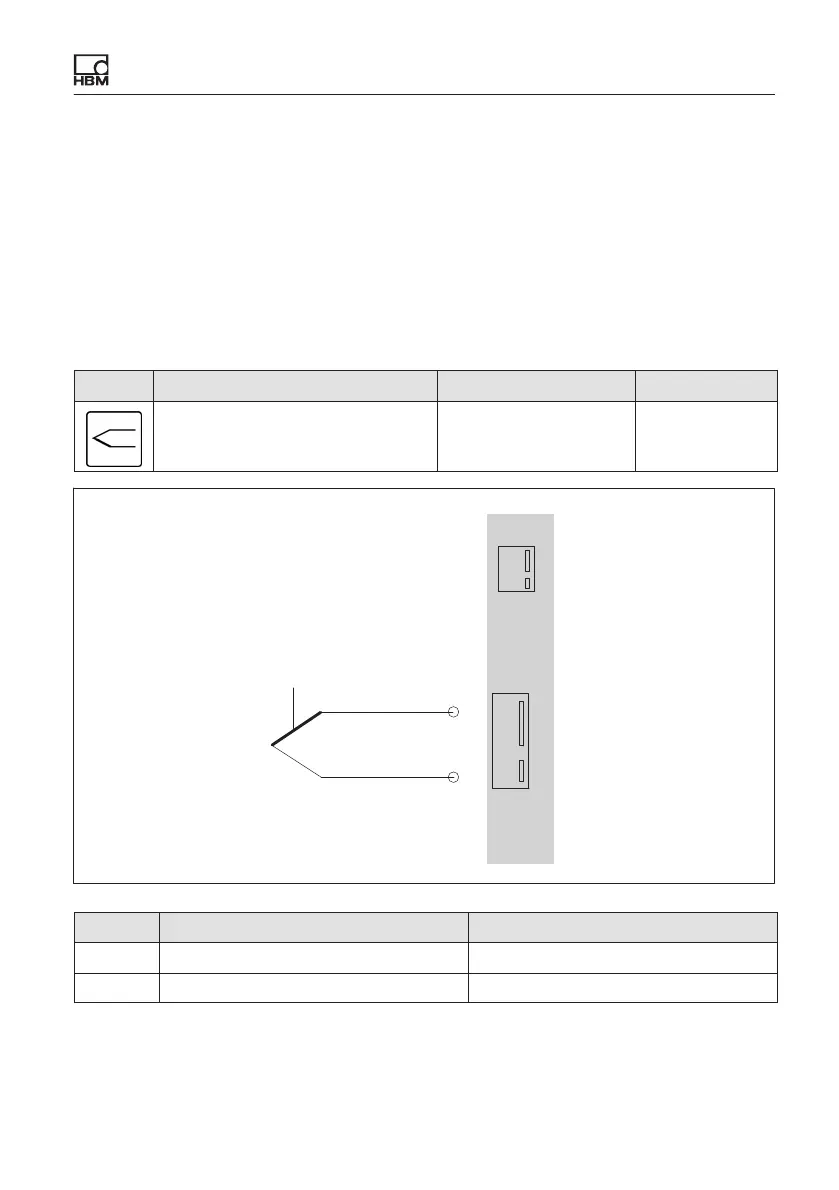

Connection of the thermocouple plug in the miniature design.
