HBM QuantumX - Connecting Transducers with Double Shield Technique

Transducer connection
QuantumX A03031_24_E00_01 HBM: public 125

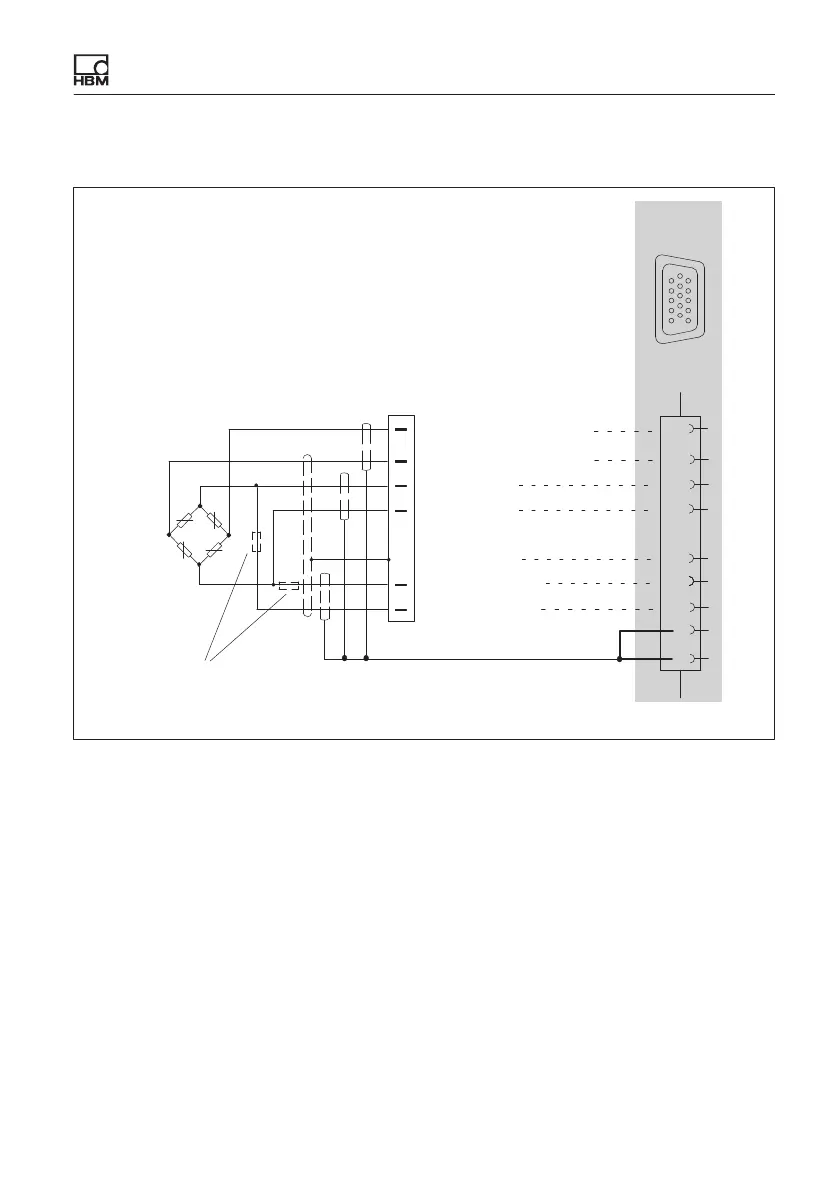

9.8 Connecting transducers with double shield technique
5
8
10
7
Measurement signal (+)
Excitation (+)
Sense lead (-)
Sense lead (+)
Excitation (-)
Measurement signal (-)
Cable shield
2
3
Hsg.
4
9
1
2
4
3
RB / 2 (to transducer)
Hsg. = Housing
1
5
6
10
11
15
For amplifiers MX840B, MX440A and MX410B, we recommend this connection
technique for very small measurement ranges, particularly in environments
subject to interference and when using long cables.
This applies for all bridge connections.
With cable lengths >50 m, a resistor with half the value of the bridge resistance
(RB/2) must be connected in each sense lead of the transducer.
