8.5.1 MX430B pin assignment
So that insertion or removal of a transducer connection can be unmistakably
identified, Pin 4 and Pin 9 in the connector plug must be bridged! If this bridge
is missing, no measurement values will be recorded at the connection!
1
4
5
11
15
Bridge

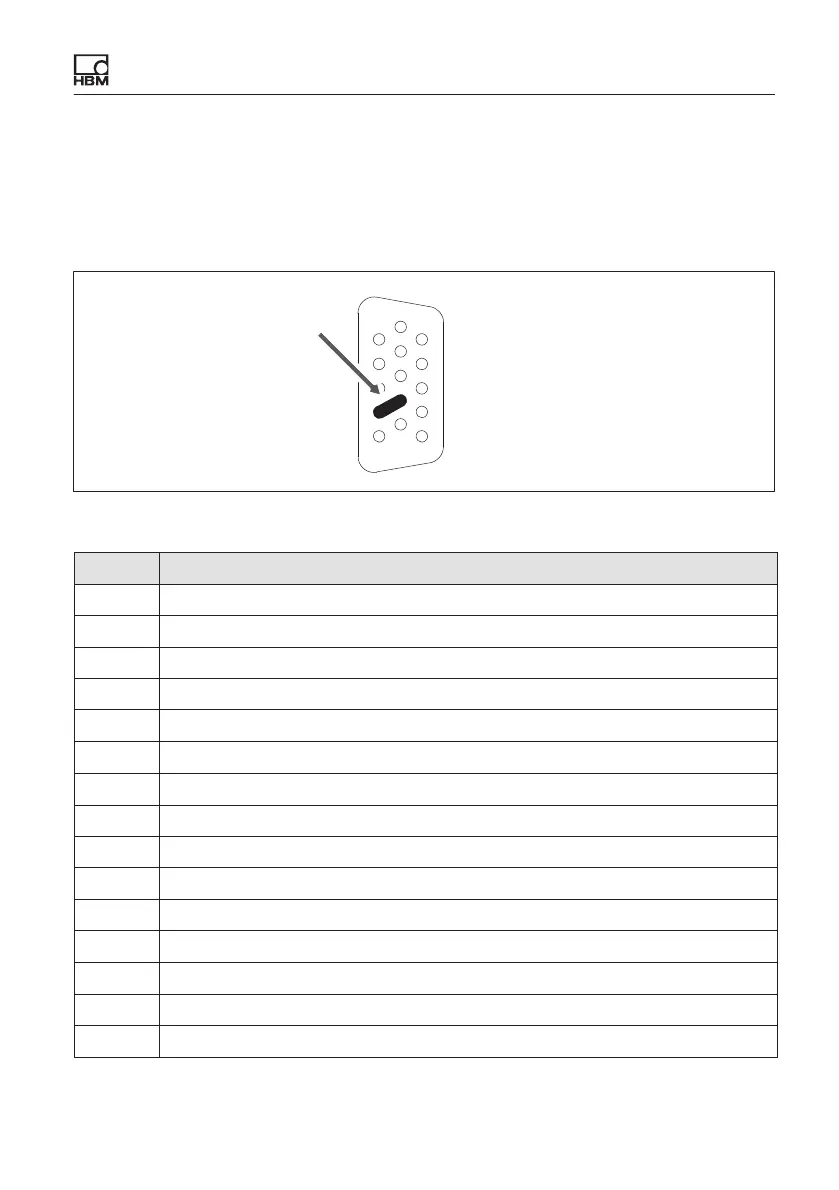

Fig. 8.7 Pin arrangement of connector plug, view from the solder side
Pin Connector
1 TEDS (+)
2 Bridge excitation voltage (-)
3 Bridge excitation voltage (+)
4 Always connect with Pin 9! (Plug-in detection)
5 Measurement signal (+)
6 TEDS (-)
7 Sense lead (-)
8 Sense lead (+)
9 Signal ground
10 Measurement signal (-)
11 Active sensor supply 5 ... 24 V (0 V)
12 Active sensor supply 5 ... 24 V (+)
13 Free
14 Free
15 Digital output
