Mechanical
46 A03031_24_E00_01 HBM: public QuantumX
The modules can be positioned anywhere in the backplane. The backplane
BPX001 is designed for wall or control cabinet installation and has drill holes
for attachment. The BPX002 backplane for rack mounting in a 19” enclosure.
The BPX002 backplane is an extension of the BPX001.
Slot 1
Slot 9

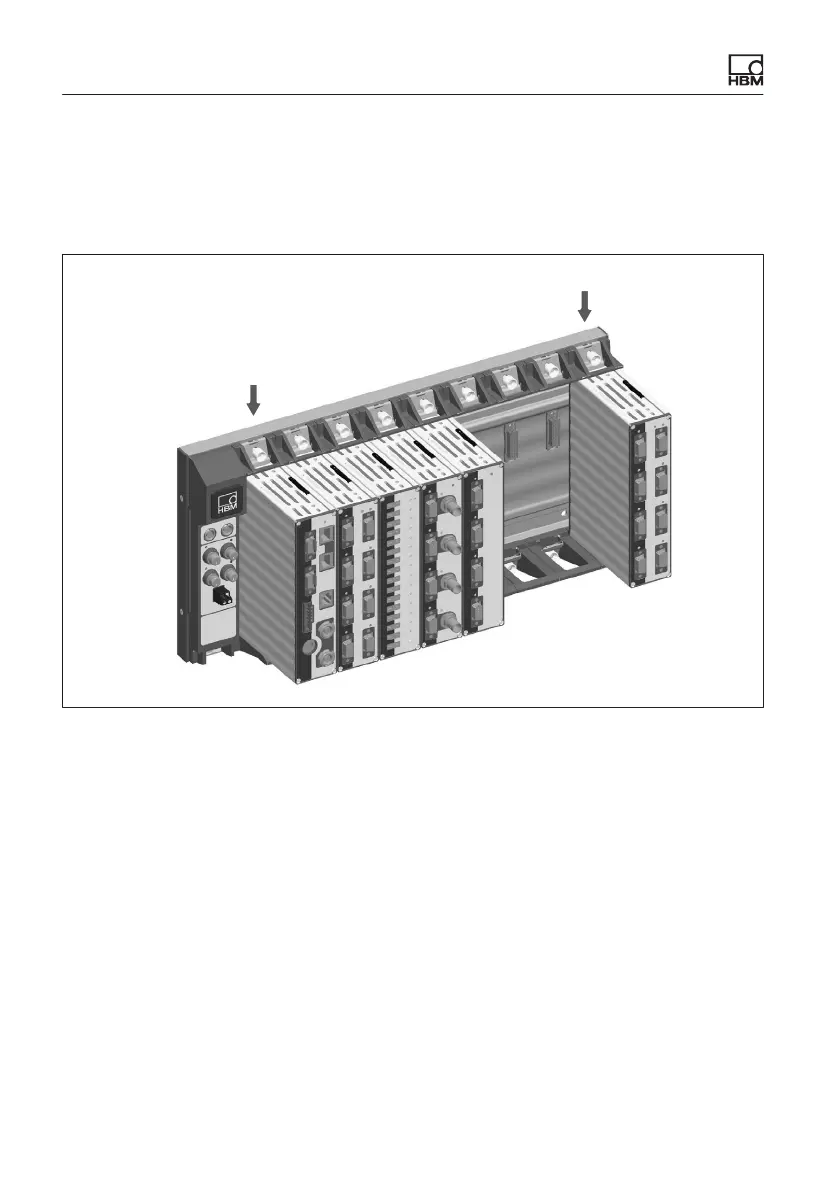

Fig. 6.11 Example of QuantumX backplane fitting
